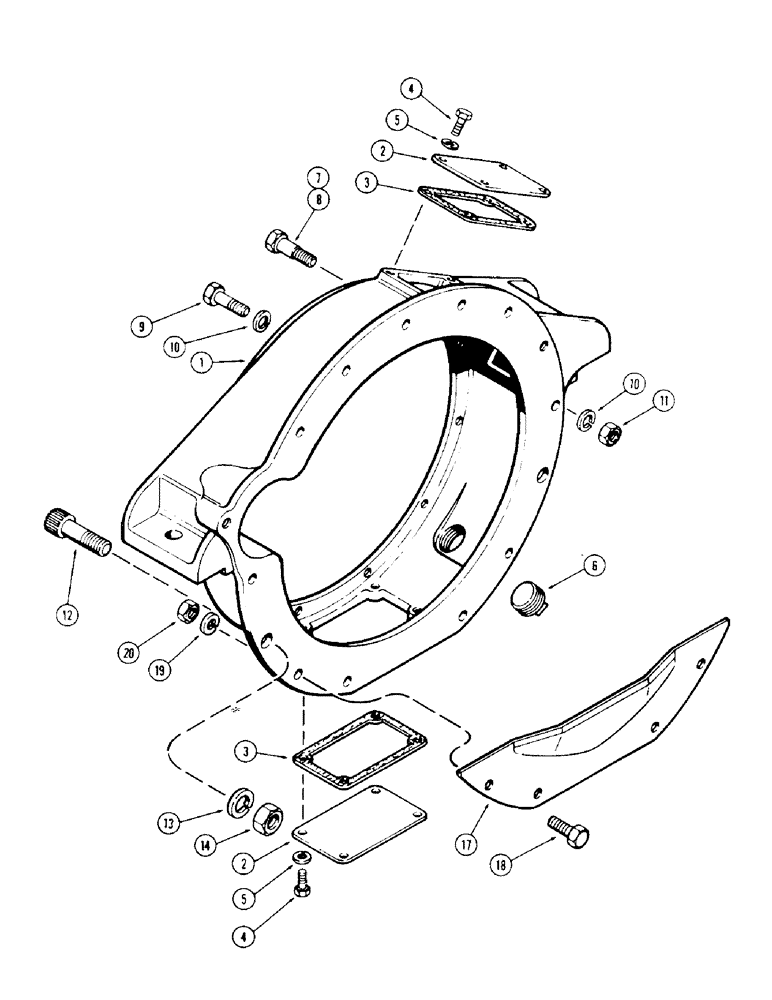

Запчасти Case 40 (024) - FLYWHEEL HOUSING, 504BDT ENGINE (10) - ENGINE

1

A153190

HOUSING

ASSY. - flywheel (Service for A21040)

1шт.

2

A22584

COVER

PLATE - cover

2шт.

3

A22585

GASKET

- cover plate

2шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4" sq. hd.

1шт.

7

A61041

STEP BOLT

BOLT - dowel, 1/2" NC x 2-3/16" (55.56 MM)

1шт.

8

A61040

STEP BOLT

BOLT - dowel, 1/2" NC x 3" (76.2 MM)

2шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex (Grade 5)

1шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex (Grade 5)

2шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.

12

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 3/4" x 3" NC socket hd (Grade 8)

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

17

A58931

GUARD

SHIELD - dust, flywheel

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.
