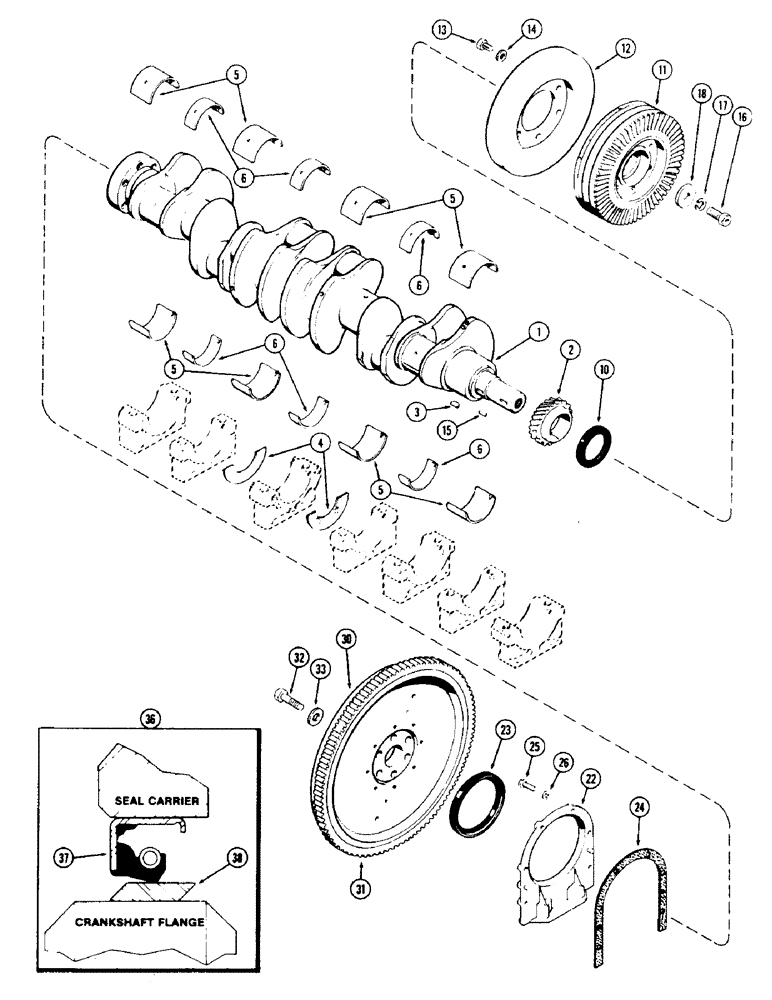

Запчасти Case 40 (022) - CRANKSHAFT AND FLYWHEEL, 504BDT ENGINE (10) - ENGINE

1

A77270

CRANKSHAFT

ASSY.

1шт.

2

A66404

GEAR

- timing

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, standard 0.156" (3.9 MM)

2шт.

4

A42447

WASHER

- thrust, oversize 0.162" (4.07 MM)

2шт.

5

A43090

BEARING LINER

LINER KIT - wide bearing, standard

4шт.

5

A43124

LINING

LINER KIT - wide bearing, .002" (0.0508 MM) Undersize

4шт.

5

A43125

CRANKSHAFT BEARING

LINER KIT - wide bearing, .010" (0.254 MM) Undersize

4шт.

5

A43126

LINING

LINER KIT - wide bearing, .020" (0.508 MM) Undersize

4шт.

5

A43127

LINING

LINER KIT - wide bearing, .030" (0.767 MM) Undersize

4шт.

6

A43089

BEARING LINER

LINER KIT - narrow bearing, standard

3шт.

6

A43120

LINING

LINER KIT - narrow bearing, .002" (0.0508 MM) Undersize

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER KIT - narrow bearing, .010" (0.254 MM) Undersize

3шт.

6

A43122

LINING

LINER KIT - narrow bearing, .020" (0.508 MM) Undersize

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER KIT - narrow bearing, .030" (0.762 MM) Undersize

3шт.

10

A62049

OIL SEAL

- oil, front

1шт.

11

A58828

PULLEY

- belt drive

1шт.

12

A58900

DAMPER

- pulley

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

14

92-6

LOCK WASHER,3/8"

6шт.

15

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

16

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley, 5/8" NC x 1-1/2" (38.1 MM)

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

A27903

WASHER

- retainer, 5/8" (15.87 MM) x 2-1/8" (53.97 MM) x 1/4" (6.35 MM)

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear (See ref. 36)

1шт.

24

A32830

GASKET

-, Serial Range: retainer-block

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

30

A65049

FLYWHEEL

ASSY.

1шт.

31

A27920

GEAR

- ring (137 teeth)

1шт.

32

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- 5/8 x 1-1/2" NF hex (Grade 8)

6шт.

33

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

36

A43194

KIT

- wear, rear oil seal

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.
