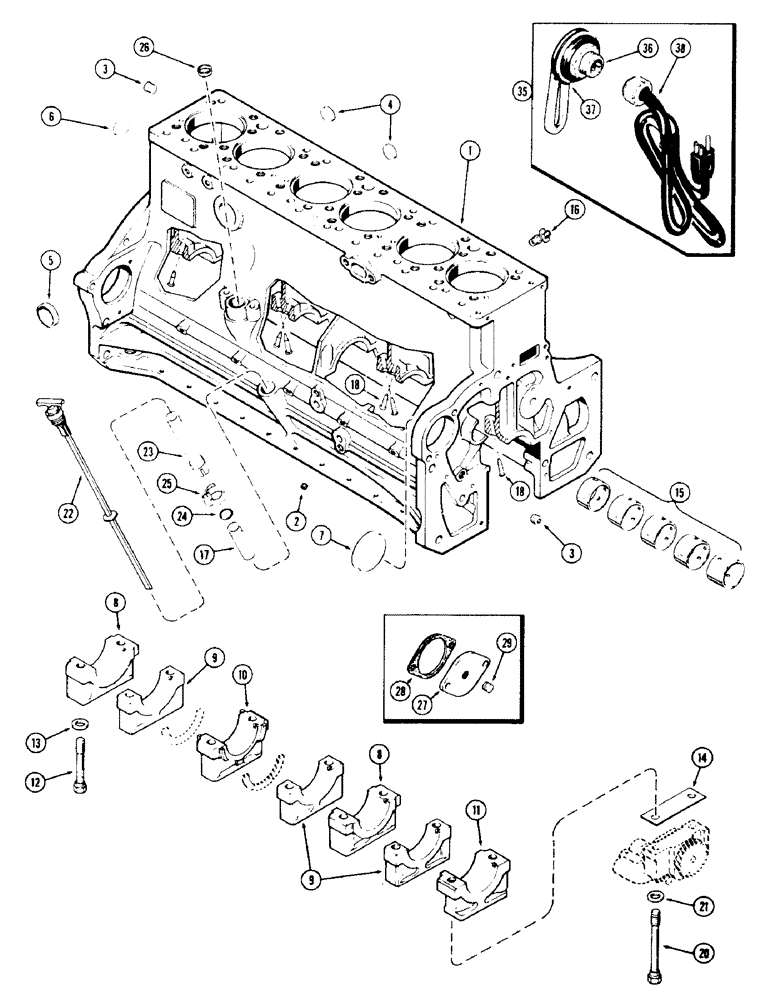

Запчасти Case 40 (020) - CYLINDER BLOCK, 504BDT ENGINE (10) - ENGINE

A152855

SKELETON ENGINE

BLOCK ASSY - short (Includes pistons, rings, connecting rods, camshaft, crankshaft and timing gears)

1шт.

AR152855

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC152855

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

A44077

CRANKCASE

BLOCK ASSY - stripped (Casting no. A66527)

1шт.

2

221-1849

PLUG

PLUG - pipe, 1/8" PT hex socket head

6шт.

3

221-1843

PLUG

PLUG - pipe, 3/8" PT hex socket head

5шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8" (34.92 MM) Dia

3шт.

5

A585691

PLUG - cup, 2" (50.8 MM) Dia

1шт.

6

A24361

PLUG

PLUG - cup, 2-3/8" (60.32 MM) Dia

1шт.

7

41-1052

PLUG,Cup, 3 1/4"

PLUG - cup, 3-1/4" (82.55 MM) Dia

1шт.

8

A58562

CAP

CAP - main bearing, wide

2шт.

9

A58563

CAP

CAP - main bearing, narrow

3шт.

10

A58564

CAP

CAP - main bearing, thrust

1шт.

11

A63902

CAP

CAP - main bearing, front

1шт.

12

A66948

STEP BOLT

BOLT - bearing cap, 5/8" - 11 x 5" (127 MM)

12шт.

13

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cap bolt, 5/8" (15.87 MM) x 1" (25.4 MM) x 1/8" (3.17 MM)

12шт.

14

A58859

SHIM,.005" Thk

SHIM, , Oil pump (0.127 mm) .005" Thk

1шт.

15

A23544

BUSHING

BUSHING SET - camshaft

1шт.

16

A23656

COCK, DRAIN

VALVE - drain

1шт.

17

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

18

A63903

NOZZLE CAP

NOZZLE - piston cooling

6шт.

20

A66949

STEP BOLT

BOLT - oil pump and bearing cap, 5/8" - 11 x 7-1/4" (184.15 MM)

2шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bolt, 5/8" (15.87 MM) x 1" (25.4 MM) x 1/8" (3.17 MM)

2шт.

22

A138327

DIPSTICK

DIPSTICK - oil level

1шт.

23

A65778

TUBE

TUBE - extension, oil filler

1шт.

24

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O RING - 1-1/8" (28.5 MM) x 1-3/8" (34.92 MM) x 1/8" (3.17 MM)

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube, 1-13/16" to 1-3/4"

1шт.

26

41-1022

PLUG,Cup, 1 3/8"

PLUG - cup, 1-3/8" dia

1шт.

27

A58891

COVER

SPARE PART COVER - pump opening

1шт.

258

A58617

GASKET

GASKET - cover

1шт.

29

221-1843

PLUG

PIPE - plug, 3/8" hex socket

1шт.

35

A44812

HEATER

HEATER ASSY. - block

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

37

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - 1-3/4" (44.45 MM) x 2" (50.8 MM) x 1/8" (3.17 MM), block heater

1шт.

38

A44813

CABLE EXTENSION

CORD ASSY - 12" (304.8 MM), block heater

1шт.
