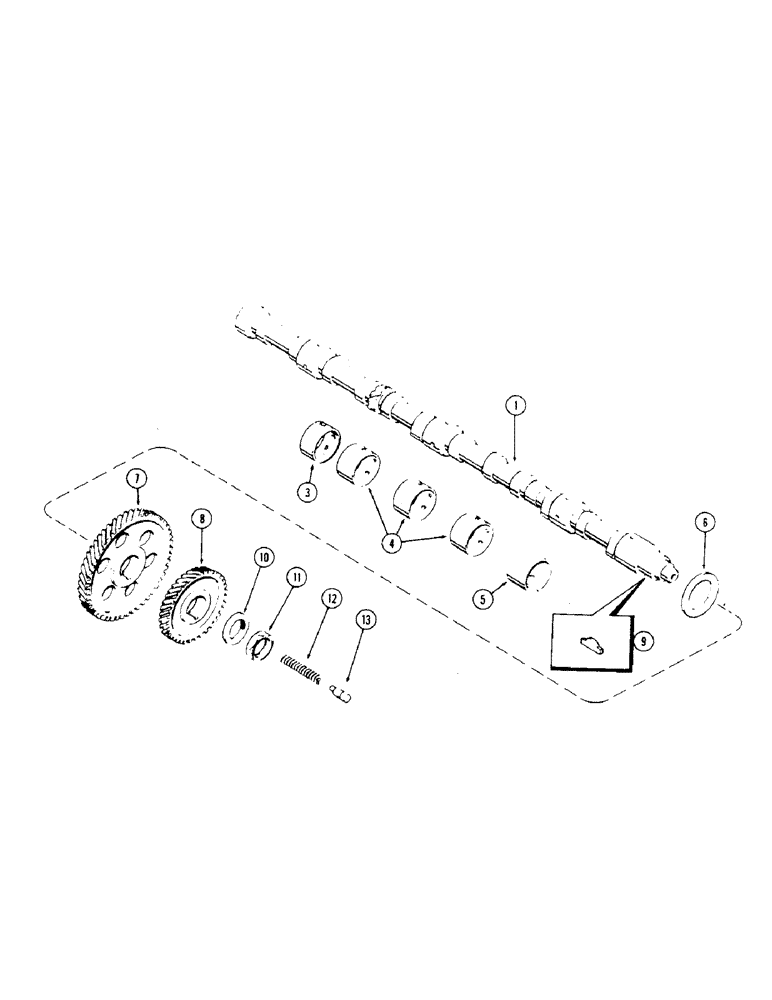

Запчасти Case 40 (018) - CAMSHAFT, 504BDT ENGINE (10) - ENGINE

1

A66124

CAMSHAFT

1шт.

A23544

BUSHING

KIT - camshaft

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1-1/8" (28.57 MM) Wide

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1-7/16" (36.51 MM) Wide

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-5/8" (41.57 MM) Wide

1шт.

6

A21017

WASHER

- thrust, 2-1/4" (57.15 MM) x 3-1/4" (82.55 MM) x 1/8" (3.17 MM)

1шт.

7

A58592

GEAR

- timing

1шт.

8

A58593

GEAR

- idler

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi Pro, 1/4" (6.35 MM) thick x 1-5/16" (33.34 MM) long

1шт.

10

A31038

THRUST WASHER

- nut, 1-3/8" (34.92 MM) x 2-1/4" (57.15 MM) x 1/8" (3.l7 MM)

1шт.

11

A58595

NUT

- camshaft

1шт.

12

CASA27853

SPRING

- plunger

1шт.

13

A27852

PLUNGER

- thrust

1шт.
