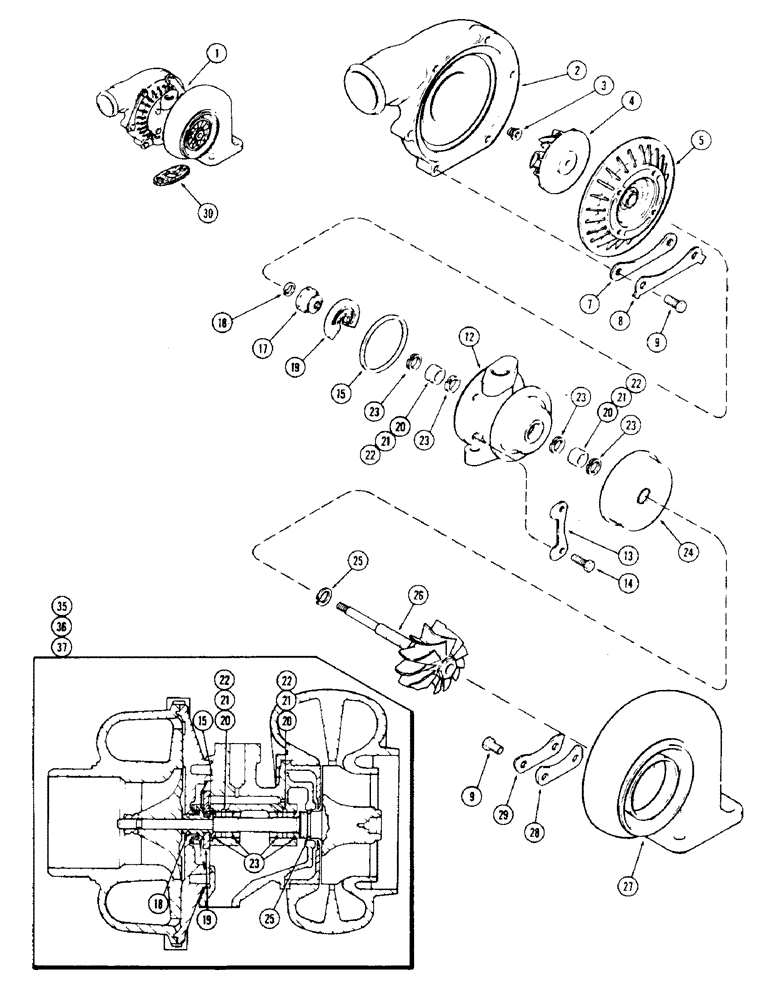

Запчасти Case 40 (012) - TURBO-CHARGER, 504BDT ENGINE (10) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

Used only to return original equipment turbo-charger for credit on remanufactured turbo-charger.

1шт.

A48192

REMAN-TURBOCHARGER

40 Drott Series D Crawler Exc.S/N 6270716 & Aft.

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER ASSY. - remanufactured

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, Turbo-Charger Assy.

1шт.

2

A45097

HOUSING

HOUSING - compressor wheel

1шт.

4

A45016

IMPELLER

IMPELLER - compressor

1шт.

7

A44838

CLAMP

CLAMP -, Serial Range: backplate-housing

3шт.

8

A44839

PLATE

LOCKPLATE - clamp bolt

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - 5/16 x 1" NC hex (Grade 5)

12шт.

12

A44825

HOUSING

HOUSING - center

1шт.

13

A44820

PLATE

LOCKPLATE - housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

15

A44833

RING

RING - seal, center housing

1шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

17

A44830

COLLAR

COLLAR - thrust, compressor

1шт.

18

A44828

RING

RING - piston, 1/2" (12.7 MM) OD

1шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

20

A44826

BEARING

BEARING - center, standard

2шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

21

A44849

BUSHING

BEARING - center, -.005

2шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

22

A44850

BUSHING

BEARING - center, -.010

2шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

23

A44827

RING

RING - snap, bearing retainer

4шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

24

A45091

GUARD

SHROUD - center housing side wheel

1шт.

25

A44829

RING

RING - piston, 23/32" (18.26 MM) OD

1шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

26

A44841

WHEEL

WHEEL - turbine

1шт.

27

A44840

HOUSING

HOUSING - turbine

1шт.

28

A44823

CLAMP

CLAMP - turbine housing

3шт.

29

A44824

PLATE

LOCKPLATE - turbine housing bolt

3шт.

30

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube

1шт.

Part of Center Bearing Kit, .010", P/N A45346

1шт.

Part of Center Bearing Kit, .005", P/N A44849

1шт.

Part of Center Bearing Kit, standard, P/N A45344

1шт.

35

A45344

KIT

KIT - center bearing standard, Includes: ref. nos. 15, 18, 19, 20, 23, 25, and 30

1шт.

36

A45345

KIT

KIT - center bearing, -.005", Includes: ref. nos. 15, 18, 19, 21, 23, 25, and 30

1шт.

37

A45346

KIT

KIT - center bearing, -.010", Includes: ref. nos. 15, 18, 19, 22, 23, 25, and 30

1шт.
