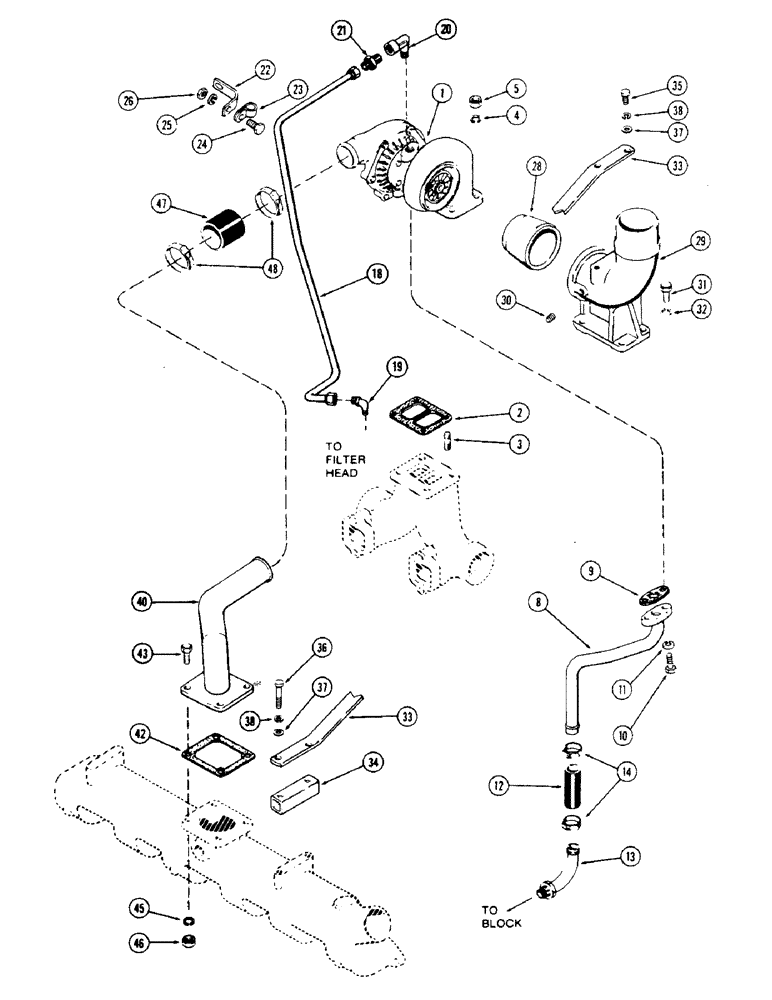

Запчасти Case 40 (010) - TURBO-CHARGER SYSTEM, 504BDT ENGINE (10) - ENGINE

1

REF

INSTRUCTION

TURBO-CHARGER ASSY (See Figure 012)

1шт.

2

A58899

GASKET,0.45mm Thk

- turbo, Serial Range: charger-manifold

1шт.

3

G11204

STUD

- 3/8" NC x 1-1/2" (38.1 MM)

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seez-pruf

4шт.

8

A62518

TUBE

- oil drain

1шт.

9

A58892

GASKET,1.59mm Thk

- drain tube flange

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A58893

HOSE

- drain tube, 7/8" ID (22.23 MM) x 3-1/2" long (88.9 MM)

1шт.

13

A58897

FITTING

-, Serial Range: hose-block

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

18

A66037

TUBE

- oil supply

1шт.

19

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 3/8" tube x 3/8" P.T. 90 degrees

1шт.

20

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 1/4" P.T. x 90 degrees

1шт.

21

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT

1шт.

22

A75301

BRACKET

- tube support, oil supply

1шт.

23

49845

CLAMP

CLIP - tube

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

28

A65554

TUBE

CONNECTOR - turbo-charger to exhaust elbow

1шт.

29

A61941

ELBOW

- exhaust

1шт.

30

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" PT square head

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

A61944

BRACE

- elbow to intake manifold

1шт.

34

A67057

SPACER

-, Serial Range: brace-manifold

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

37

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16"

4шт.

38

92-6

LOCK WASHER,3/8"

4шт.

40

A150450

ELBOW

- intake

1шт.

42

A58910

GASKET

- intake, Serial Range: elbow-manifold

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex (Grade 5)

4шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

47

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

48

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.
