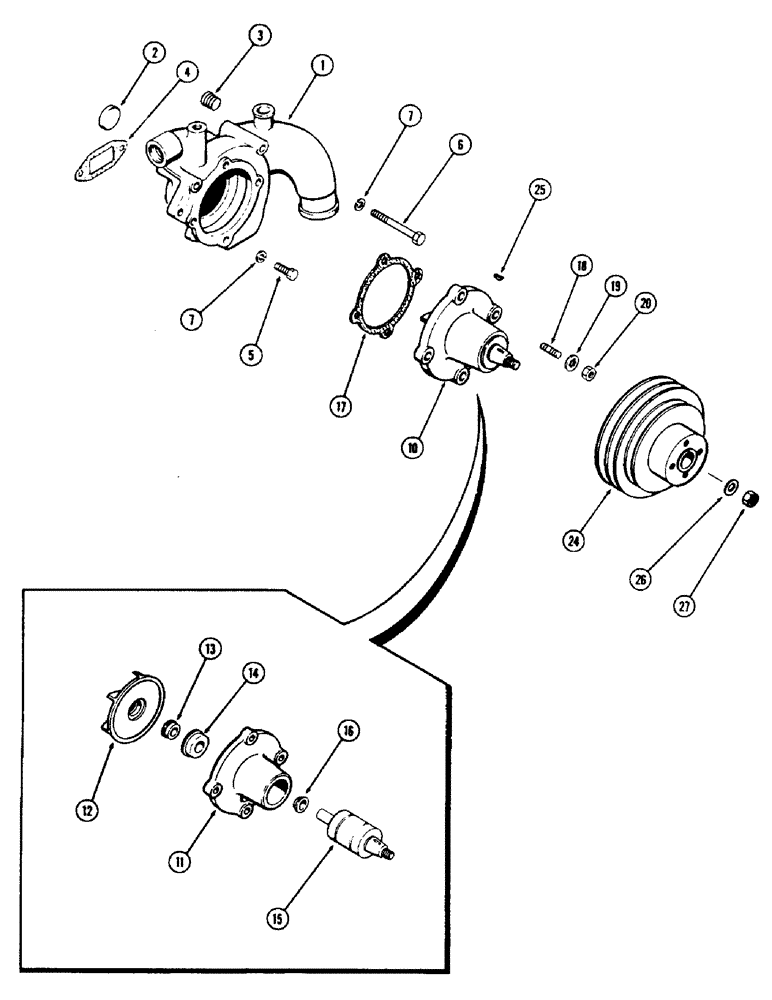

Запчасти Case 40 (004) - WATER PUMP, 504BDT ENGINE (10) - ENGINE

1

A60630

HOUSING

BODY ASSY. - water pump

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8" dia

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT sq. hd.

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

A152153

PUMP

PUMP ASSY. - water

1шт.

10

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

12

A152126

IMPELLER

IMPELLER - water

1шт.

13

A34000

SEAL

SEAL - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A58643

SHAFT

SHAFT ASSY

1шт.

16

CASA29440

SLINGER

- pump

1шт.

17

A58646

GASKET

GASKET - pump, Serial Range: housing-body

1шт.

18

A62234

STUD

STUD - pump, 3/8" NC x 1-5/16" (33.34 MM)

4шт.

19

193-20

WASHER,Ext-Int Tooth, 7/16"

WASHER - lock, 3/8" internal Shakeproof

4шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex

4шт.

24

A58650

PULLEY

PULLEY - belt, pump drive

1шт.

25

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, , Pulley to pump #9, 3/16" x 3/4", HT

1шт.

26

A58651

WASHER

WASHER - 1/2" (17.8 MM) x 1-1/16" (26.98 MM) x 1/8" (3.17 MM)

1шт.

27

131-1306

JAM NUT,Jam, 3/8"-16

NUT - lock, 1/2" NC hex

1шт.
