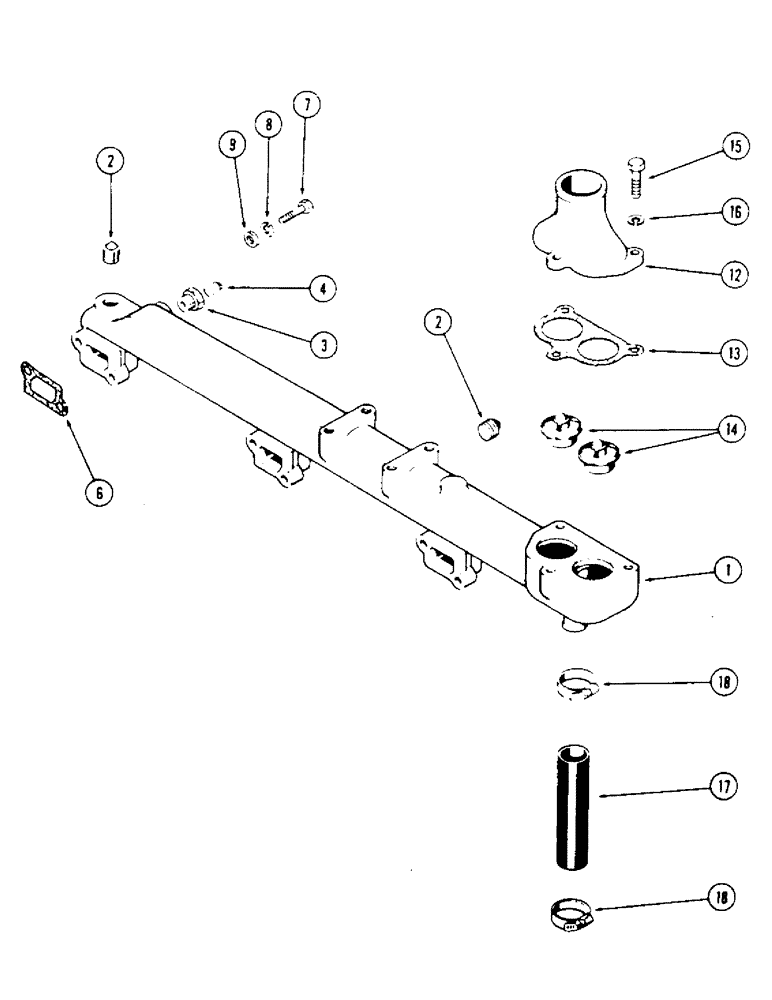

Запчасти Case 40 (002) - WATER MANIFOLD AND THERMOSTAT, 504BDT ENGINE (10) - ENGINE

A153152

MANIFOLD

ASSY. - water

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD (Order A153152)

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket

2шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2" to 3/8" PT

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT hex socket

1шт.

6

A58637

MANIFOLD GASKET

-, Serial Range: manifold-head

3шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" NC hex (Grade 5)

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

6шт.

12

A60689

HOUSING

- thermostat

1шт.

13

A58639

GASKET

-, Serial Range: housing-manifold

1шт.

14

A57641

THERMOSTAT

- 180 degrees F (82 degrees C)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4" ID (31.75 MM) x 5-1/4" (133.35 MM)

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16" to 1-3/4"

2шт.
