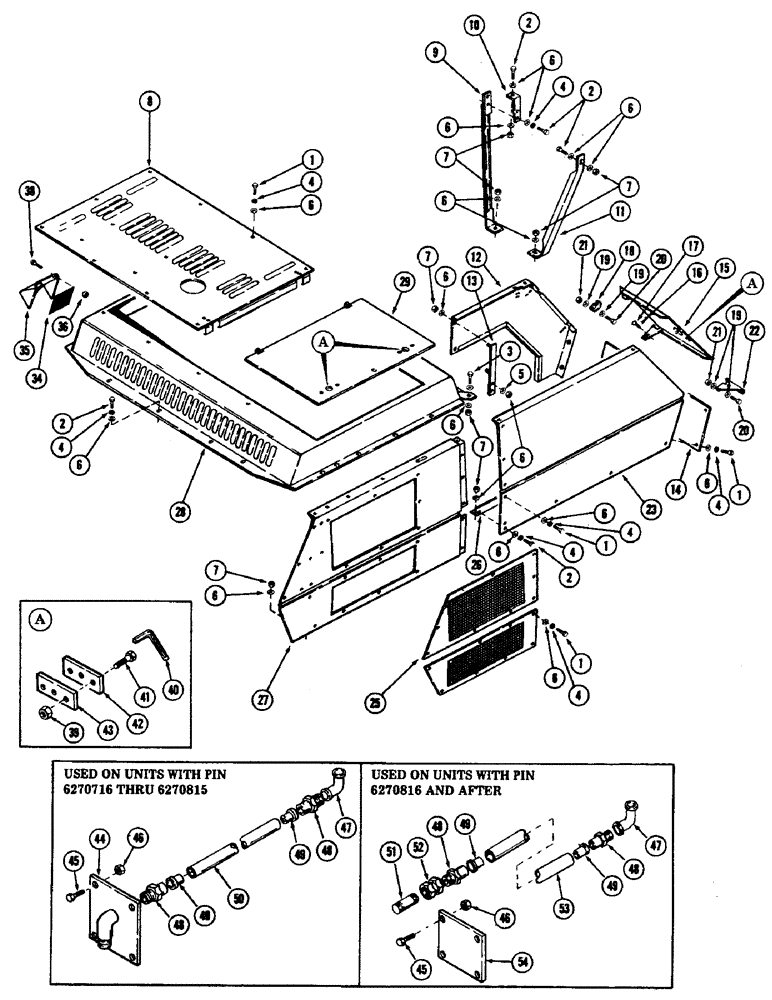

Запчасти Case 40 (114) - TURNTABLE SHROUDING, (TOP AND RIGHT SIDE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S95569

WASHER

hardened flat - 1/2"

1шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 1/2"

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

8

S613334

COVER, engine (Used on units with Case 504BDT diesel engine)

1шт.

S613333

COVER, engine (Used on units with Detroit diesel 4-71 engine)

1шт.

9

S231608

BRACE

shroud support

1шт.

10

S108326

ANGLE

, Serial Range: brace-shroud

1шт.

11

S235917

BRACE, Serial Range: turntable-shroud

1шт.

12

S606687

SHROUD

1шт.

13

S220373

SUPPORT, shroud

1шт.

14

S219775

SHEET

COVER

1шт.

15

S513408

DOOR

front

1шт.

16

A70250

PIN

hair

1шт.

17

S217887

PIN

door holder

1шт.

18

S221455

BRACKET

door mounting

1шт.

19

195-103

WASHER,5/16"

flat - 3/8"

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

22

S221453

BRACKET

door holder

1шт.

23

S613353

SHROUD, right front

1шт.

24

S505834

GRILLE, shroud lower

1шт.

25

S505835

GRILLE, shroud upper

1шт.

26

S219895

ANGLE, shroud mount

1шт.

27

S613304

SHROUD, right rear

1шт.

28

S955292

SHROUD, engine

1шт.

29

S513390

DOOR, engine access

1шт.

30

S224921

BRACKET, door mounting

1шт.

31

S224922

BRACKET, door mounting

1шт.

32

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 3/8"

4шт.

33

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

34

S114094

SCREEN

1шт.

35

S613256

COVER, screen

1шт.

36

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

37

195-518

WASHER,1/4", SAE

flat - 1/4"

4шт.

38

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

39

131-461

LOCK NUT,1/4"-20

NUT, self locking - 1/4" NC

6шт.

40

S115083

KEY

angle

3шт.

41

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" Gr 5

6шт.

42

S110414

LOCK

3шт.

43

S110415

SPACER

3шт.

44

S237231

PLATE (Mounts to shroud item 28)

1шт.

45

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

46

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4"

4шт.

47

217-1050

90 ELBOW,1/8" - 27 NPTF Female

90 degrees - 1/8" PT

1шт.

48

222-1839

FITTING,17/32"-24 x 1/8" NPT

CONNECTOR - 3/8" tube x 1/8" PT

2шт.

49

222-2446

INSERT,1/4" Tube

- 3/8" tube

2шт.

50

S85503

TUBE,37.5" OD

- 28" (Air cleaner to air restrictor)

1шт.

51

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" PT

1шт.

52

217-226

COUPLING

FITTING - bulkhead

1шт.

53

S85503

TUBE,37.5" OD

- 48" (Air restrictor to air cleaner)

1шт.

54

S115087

PLATE (Covers hole on shroud item 28)

1шт.
