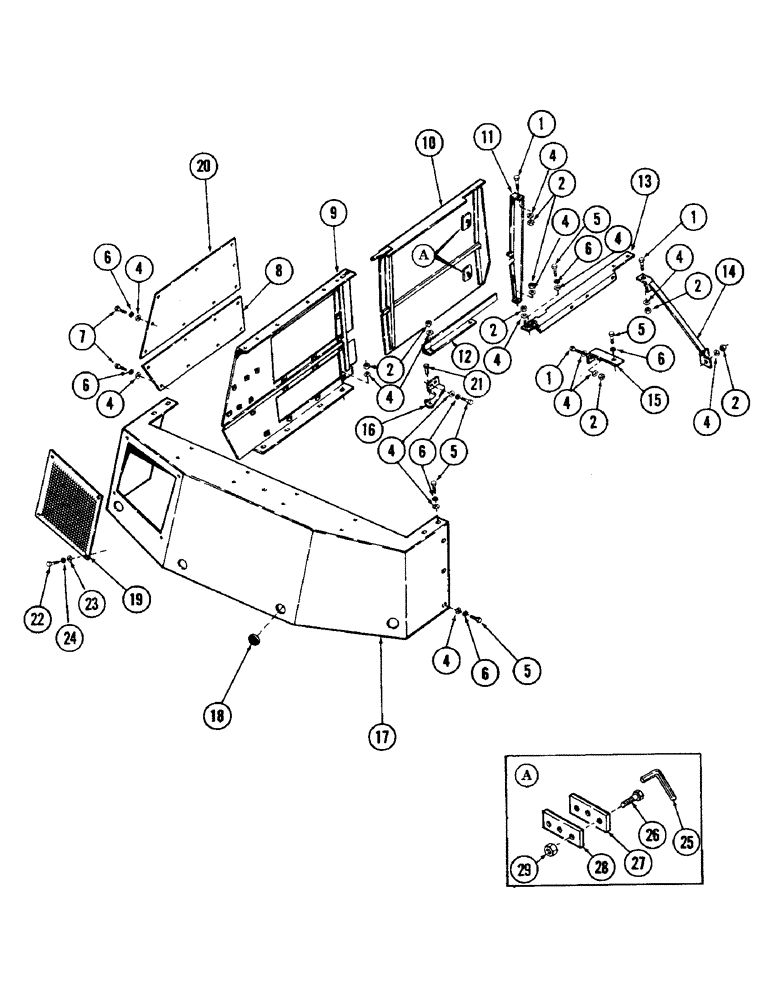

Запчасти Case 40 (112) - TURNTABLE SHROUDING, (REAR AND LEFT SIDE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

3

S95569

WASHER

hardened flat - 1/2"

1шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 1/2"

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

8

S513351

COVER, shroud lower

1шт.

9

S613303

SHROUD, left rear

1шт.

10

S613352

SLIDE

DOOR, left front

1шт.

11

S513411

BRACE, door stop

1шт.

12

S231055

ANGLE, door stop

1шт.

13

S226305

BRACKET

1шт.

14

S511863

BRACE, door stop

1шт.

15

S226314

ANGLE

1шт.

16

S237119

BRACKET, door holder

1шт.

17

S611627

SHROUD, turntable rear

1шт.

18

S105894

CAP

PLUG, rubber

4шт.

19

S235981

GRILLE

rear shroud

1шт.

20

S513352

COVER, shroud upper

1шт.

21

S217887

PIN

1шт.

22

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

23

196-15

WASHER,17/32" x 1 1/6" x .134"

flat -1 /2"

4шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

25

S115083

KEY

angle

2шт.

26

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" Gr 5

4шт.

27

S110414

LOCK

2шт.

28

S114196

SPACER

2шт.

29

131-461

LOCK NUT,1/4"-20

NUT, self locking - 1/4" NC

4шт.
