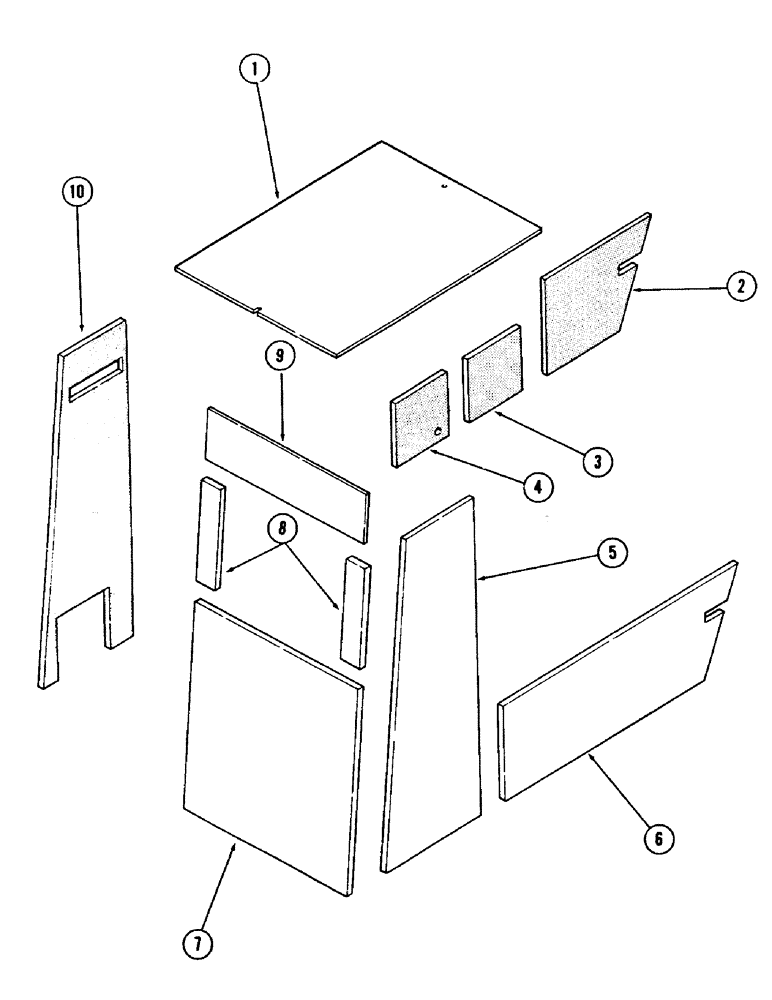

Запчасти Case 40 (106) - CAB AND ATTACHING PARTS, (INSULATION) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

operator (Includes items listed below and Figures 096 thru 104)

1шт.

1

S231409

SHROUD ASSY.

INSULATION (Top)

1шт.

2

S108110

SLEEVE CYLINDER

INSULATION (Lower left front)

1шт.

3

S108112

INSULATOR

INSULATION, door (Included in door assembly, item 1 on Figure 100)

1шт.

4

S108113

INSULATOR

INSULATION, door (Included on door assembly, item 1 on Figure 100)

1шт.

5

S108109

SLEEVE CYLINDER

INSULATION (Right rear)

1шт.

6

S108108

SHROUD ASSY.

INSULATION (Lower right front)

1шт.

7

S108105

SLEEVE CYLINDER

INSULATION (Lower rear)

1шт.

8

S108107

SLEEVE CYLINDER

INSULATION (Left and right rear)

2шт.

9

S108106

SLEEVE CYLINDER

INSULATION (Rear rop)

1шт.

10

S108111

SLEEVE CYLINDER

INSULATION (Left rear)

1шт.

11

S95517

ADHESIVE

(Not illustrated)

1шт.
