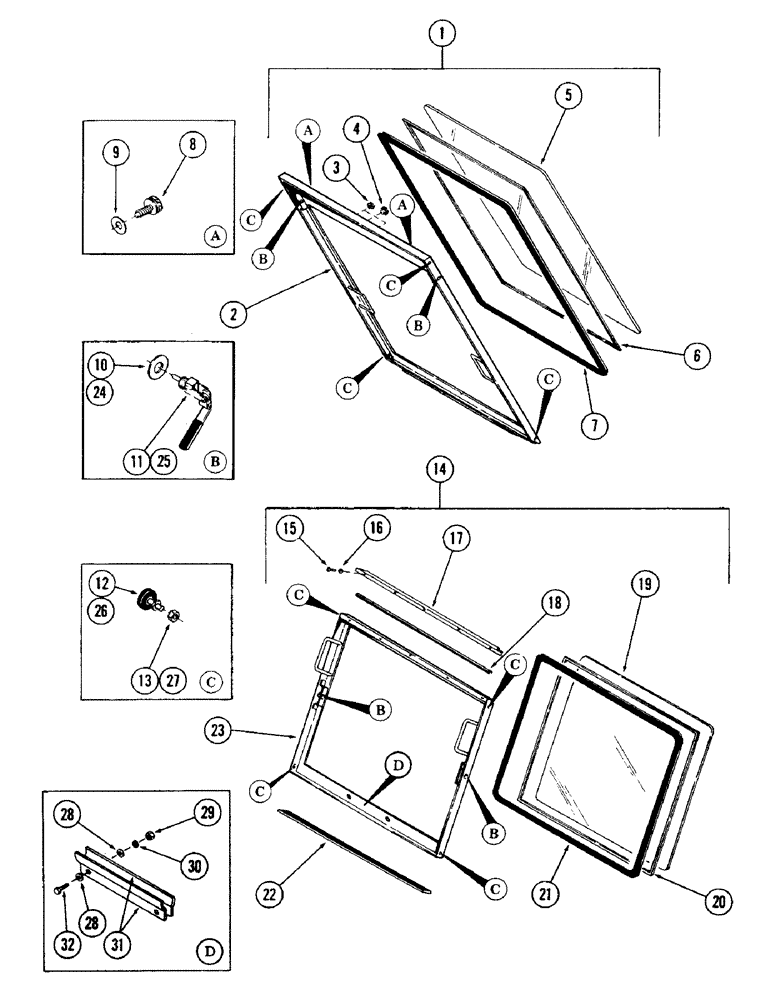

Запчасти Case 40 (102) - CAB AND ATTACHING PARTS, (UPPER AND LOWER FRONT WINDOWS AND ATTACHING PARTS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

operator (Includes items listed below and Figures 096 thru 100 and 104 thru 106)

1шт.

1

S610671

WINDOW

ASSEMBLY, front upper

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW, weldment

1шт.

3

353-260

PLUG - 5/16" Cap, 5/16"-24

2шт.

4

353-265

PLUG - 3/4" Cap, 3/4"-16

1шт.

5

S108099

GLASS, front upper

1шт.

6

S75830

SEAL

STRIP, filler (Bulk) - 1 piece - 145" long

1шт.

7

S75829

SEAL

RUBBER, glass setting (Bulk) - 1 piece - 145" long

1шт.

8

S109773

FASTENER

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

4шт.

11

S231570

CLAMP

windshield (Right hand)

1шт.

S231571

CLAMP

windshield (Left hand)

1шт.

12

D70621

ROLLER

rubber

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

S610674

WINDOW ASSY

WINDOW ASSEMBLY, front lower

1шт.

15

S60105

SCREW, machine - 1/4" NF x 1/2"

5шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

17

S511097

BRACKET

1шт.

18

S60106

CHANNEL, rubber (Bulk) - 1 piece - 30" long

1шт.

19

S108100

WINDOW, plastic

1шт.

20

S75830

SEAL

STRIP, filler (Bulk) - 1 piece - 73" long

1шт.

21

S75829

SEAL

RUBBER, glass setting (Bulk) - 1 piece - 73" long

1шт.

22

S109510

SEAL (Bulk) - 1 piece - 62" long

1шт.

23

S610763

WINDOW, weldment

1шт.

24

195-35

LOCK WASHER

WASHER, lock - 3/4" (Internal tooth)

4шт.

25

S231570

CLAMP

windshield (Right hand)

1шт.

S231571

CLAMP

windshield (Left hand)

1шт.

26

D70621

ROLLER

rubber

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

195-21

WASHER,5/16"

flat - 5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

S236869

RETAINER

2шт.

32

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

33

D70621

ROLLER

ADHESIVE (Not illustrated)

1шт.
