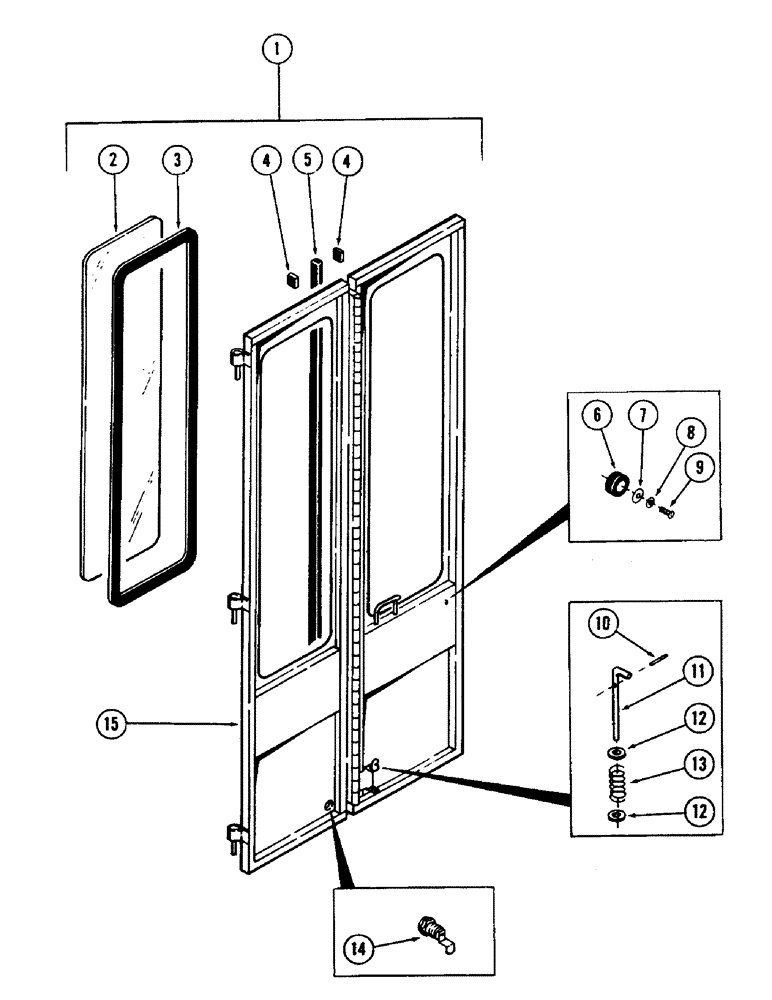

Запчасти Case 40 (100) - CAB AND ATTACHING PARTS, (DOOR AND ATTACHING PARTS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

Operator (Includes items listed below and Figures 096 thru 098 and 102 thru 106)

1шт.

1

S955011

DOOR ASSY.

1шт.

2

S108102

SPARE PART Plastic

2шт.

3

S109778

SEAL

SETTING MATERIAL (Bulk) - 2 pieces - 92" long

1шт.

4

S109777

SEAL

(Bulk) - 1 piece - 6" long (Cut into 4 pieces 1.3" length)

1шт.

5

S109508

SEAL

(Bulk) - 1 piece - 59" long

1шт.

6

S109512

BUMPER

SPARE PART Door stop

1шт.

7

S109505

SPARE PART Fender

1шт.

8

195-513

WASHER,#10

Flat - 7/32"

1шт.

9

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

Machine - No. 10 - 32 NF x 1"

1шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

1шт.

11

S238775

PIN

(Supersedes S231613)

1шт.

12

195-102

WASHER,1/4"

Flat - 5/16"

2шт.

13

S238355

SPRING

(Supersedes S62977)

1шт.

14

S90080

LOCK

SPARE PART Door

1шт.

15

NSS

NOT SOLD SEPARAT

DOOR, weldment

1шт.

16

REF

INSTRUCTION

INSULATION (See item 3 on Figure 106)

1шт.

17

REF

INSTRUCTION

INSULATION (See item 4 on Figure 106)

1шт.

18

S95517

ADHESIVE

(Not illustrated)

1шт.
