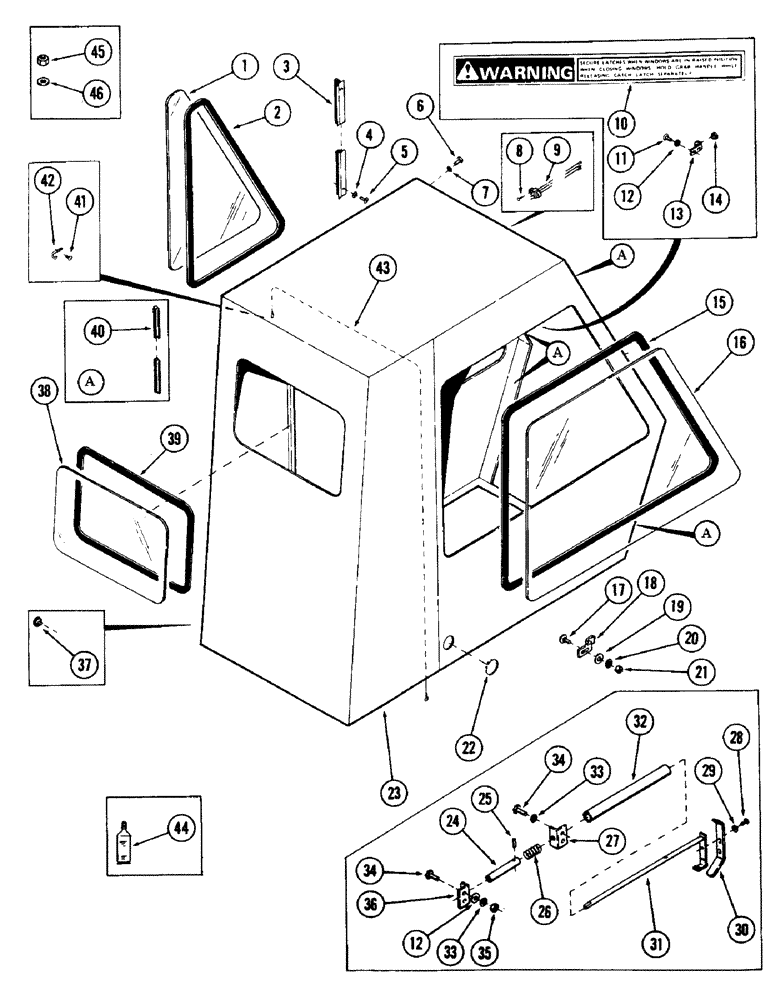

Запчасти Case 40 (096) - CAB AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

ASSEMBLY (Includes items listed below and Figures 096 thru 106)

1шт.

1

S108104

WINDOW, plastic

1шт.

2

S109778

SEAL

SETTING MATERIAL (Bulk) - 1 piece - 102" long

1шт.

3

S108306

RETAINER

door

1шт.

4

195-102

WASHER,1/4"

- flat 1/4"

6шт.

5

S109766

SCREW

machine - 5/16" NC x 3/4"

6шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

S49599

WASHER

seal - 3/8"

3шт.

8

S60825

SCREW

machine - No. 6 x 1/2"

2шт.

9

S231582

HARNESS

SOCKET ASSEMBLY

1шт.

10

S232929

DECAL, window warning

1шт.

11

S109767

SCREW

machine - 1/4" NC x 3/4"

4шт.

12

195-101

WASHER,3/16"

flat - 1/2"

6шт.

13

S231611

BRACKER, bumper

2шт.

14

S109513

BUMPER

2шт.

15

S109778

SEAL

SETTING MATERIAL (Bulk) - 1 piece - 156" long

1шт.

16

S108103

WINDOW, plastic

1шт.

17

111-342

BOLT, carriage - 3/8" NC x 1"

8шт.

18

S231580

BRACKET (Right hand)

2шт.

S231581

BRACKET (Left hand)

2шт.

19

195-103

WASHER,5/16"

flat - 3/8"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

S61789

PLUG

button

1шт.

23

S610764

CAB, weldment

1шт.

S231583

RETAINER

DOOR RETAINER ASSEMBLY

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

S109506

SPRING

1шт.

27

S108307

BRACKET

1шт.

28

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

machine - 1/4" NC x 1/2"

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

S511203

BRACKET

1шт.

31

S231584

RETAINER

door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

1шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

34

S63053

SCREW

machine - 1/4" NC x 5/8"

4шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

S108307

BRACKET

1шт.

37

S109513

BUMPER, door

1шт.

38

S108101

WINDOW, plastic

1шт.

39

S109778

SEAL

SETTING MATERIAL (Bulk) - 1 piece - 84" long

1шт.

40

S109775

SEAL

trim (Bulk) - 1 piece - 245" long

1шт.

41

S109769

SCREW

machine - No. 10 NF x 3/4"

2шт.

42

S61769

HOOK

1шт.

43

S231612

WIRE ASSEMBLY

1шт.

44

S95517

ADHESIVE

- 10 oz. (Use with seals)

1шт.

S109780

ADHESIVE

- 1 oz. (Use with seal on item 3)

1шт.

45

131-208

SPECIAL NUT,1/2"-13

NUT, self locking - 1/2" (Mounts cab to turntable)

14шт.

46

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 17/32"

11шт.

S95569

WASHER

flat - 9/16"

3шт.
