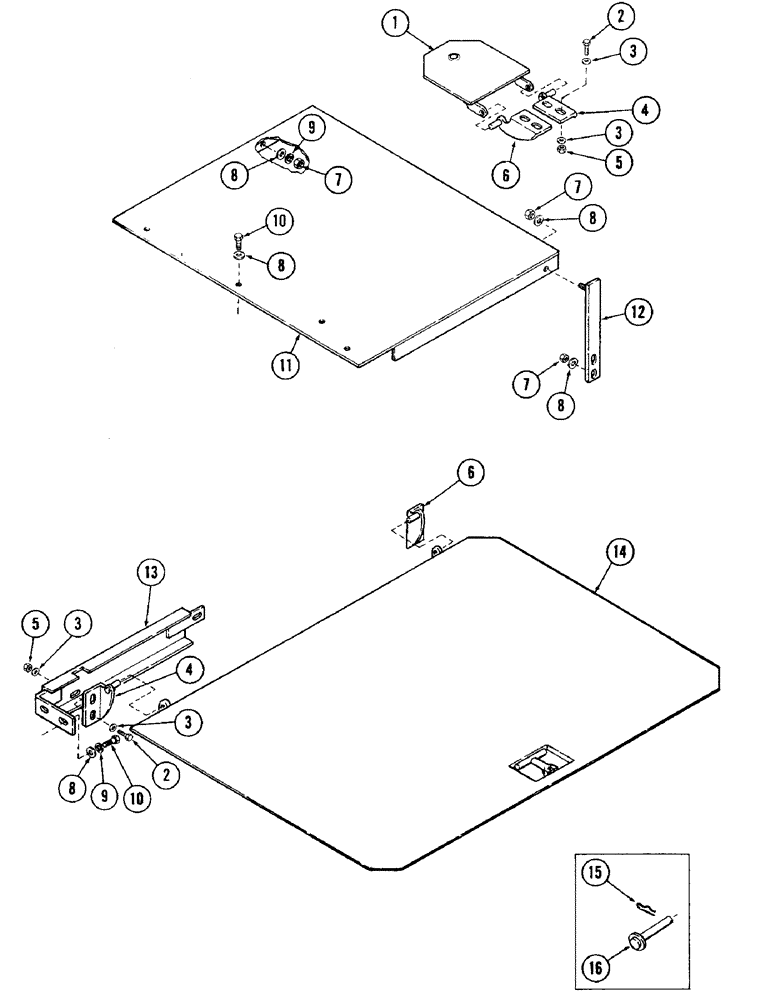

Запчасти Case 40 (310) - OPTIONAL VANDAL TOP GUARD GROUP, (USED WITH TURNTABLE SHROUDING) (88) - ACCESSORIES

1

S229722

COVER (Left side)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 3/8"

1шт.

4

S221455

BRACKET

2шт.

5

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

6

S222540

BRACKET

2шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2" NC

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

11

S508739

SHROUD (Left front)

1шт.

12

S226309

BRACKET

1шт.

13

S511233

CHANNEL

1шт.

14

S610795

DOOR (Right front top)

1шт.

15

A70250

PIN

hair

1шт.

16

S217887

PIN

(Used with item 14 to lock door open)

1шт.
