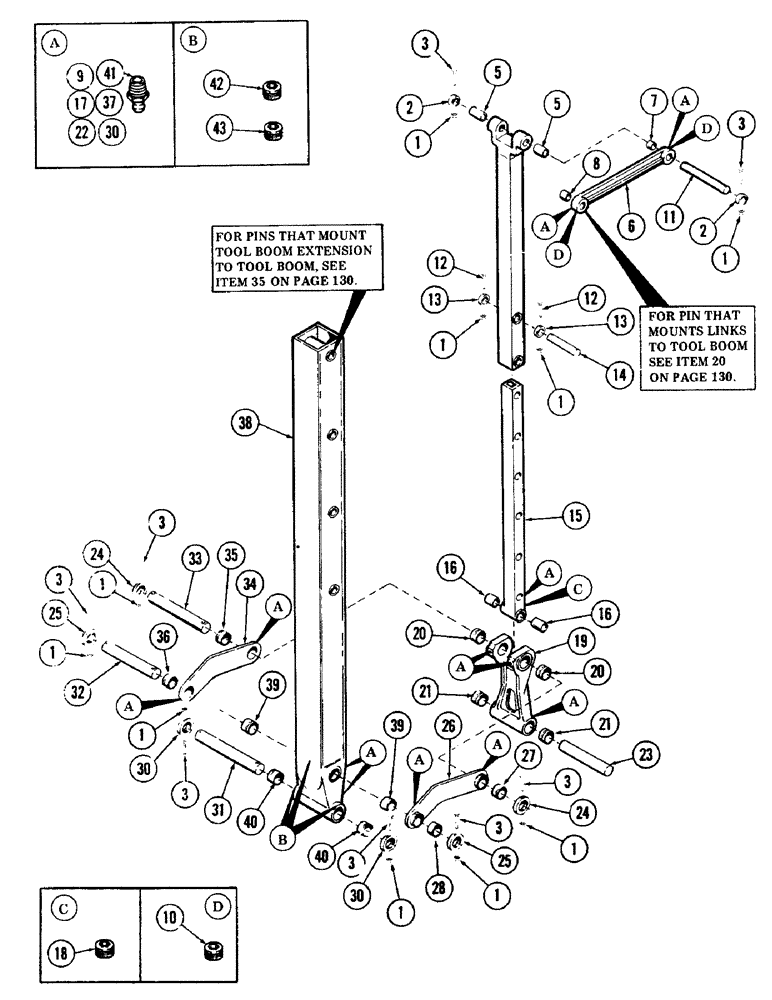

Запчасти Case 40 (132) - "Y" TOOL BOOM EXTENSION, LINKS AND PINS (84) - BOOMS, DIPPERS & BUCKETS

1

S108054

NUT

cap - 1/2" NC

8шт.

2

S106360

COLLAR

2шт.

3

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1/2" NC x 4-1/4" Gr 5

2шт.

4

S512049

LINK

adjustable outer

1шт.

5

S511923

BUSHING

2шт.

6

S230987

LINK ASSY.

LINK, guide

2шт.

7

S229565

BUSHING

1шт.

8

S229548

BUSHING

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

2шт.

10

S86890

SET SCREW

SCREW, set

4шт.

1

S233809

LARGE PIN

PIN (Tool cylinder rod, Serial Range: end-links)

1шт.

12

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2" NC x 3-3/4" Gr 5

4шт.

13

S111952

COLLAR

4шт.

14

S234950

PIN

- (Inner link to outer link)

2шт.

15

S512065

BRACKET

LINK, adjustable inner

1шт.

16

S511923

BUSHING

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Staight)

1шт.

18

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" (Cone point)

4шт.

19

S610353

LINK

ASSEMBLY

1шт.

20

S512013

BUSHING

2шт.

21

S229548

BUSHING

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

3шт.

23

S233811

PIN

, Serial Range: (Link-bucket)

1шт.

24

S113136

COLLAR

2шт.

25

S113137

COLLAR

2шт.

26

S233781

LINK ASSY.

LINK (Right hand)

1шт.

27

S511923

BUSHING

1шт.

28

S229548

BUSHING

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

2шт.

30

S108660

COLLAR

2шт.

31

S233813

PIN

, Serial Range: (Extension-bucket)

1шт.

32

S233808

PIN

, Serial Range: (Extension-links)

1шт.

33

S233809

LARGE PIN

PIN (Tool cylinder rod, Serial Range: end-links)

1шт.

34

S233780

ARM

LINK ASSEMBLY (Left hand)

1шт.

35

S511923

BUSHING

1шт.

36

S229548

BUSHING

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

2шт.

38

S611747

BOOM

EXTENSION, tool boom

1шт.

39

S226564

BUSHING

2шт.

40

S511922

BUSHING

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

4шт.

42

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" (Cup point)

4шт.

43

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" (Cone point)

4шт.
