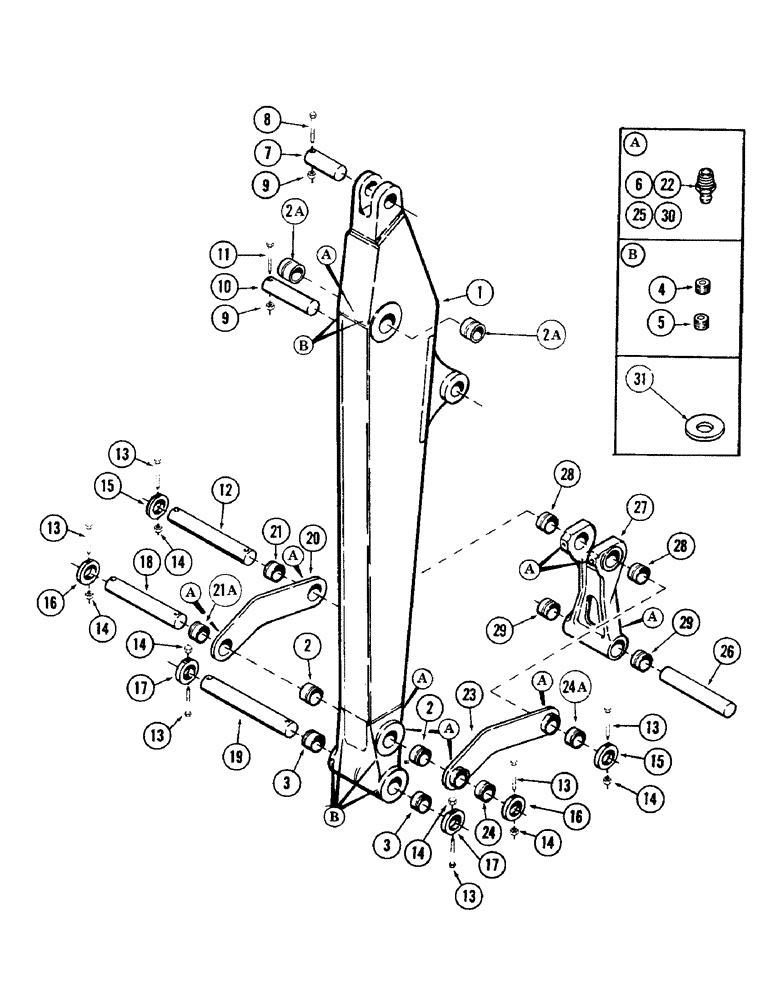

Запчасти Case 40 (128) - DIPPERSTICK WITH ATTACHMENT LINKS AND PINS (84) - BOOMS, DIPPERS & BUCKETS

1

S955145

DIPPER

STICK (9')

1шт.

S955147

DIPPER

STICK (10'5")

1шт.

2

S229564

BUSHING

2шт.

2a

S229565

BUSHING

2шт.

3

S511922

BUSHING

2шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" (Cup point)

6шт.

5

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" (Cone point)

6шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

6шт.

7

S233798

PIN

(Crowd, Serial Range: cylinder-dipperstick)

1шт.

8

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- 1/2" NC x 5-1/4" Gr 8

1шт.

9

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

10

S233805

PIN

- (Tool, Serial Range: cylinder-dipperstick)

1шт.

11

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- 1/2" NC x 4-3/4" Gr 8

1шт.

12

S233809

LARGE PIN

PIN (Tool, Serial Range: cylinder-links)

1шт.

13

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2" NC x 4-1/4" Gr 5

6шт.

14

S108054

NUT

self locking capped end - 1/2" NC

6шт.

15

S113136

COLLAR

2шт.

16

S113137

COLLAR

2шт.

17

S108660

COLLAR

2шт.

18

S233808

PIN

, Serial Range: (Dipperstick-links)

1шт.

19

S233813

PIN

, Serial Range: (Dipperstick-bucket)

1шт.

20

S233780

ARM

LINK (Left hand)

1шт.

21

S511923

BUSHING

1шт.

21a

S229548

BUSHING

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

2шт.

23

S233781

LINK ASSY.

LINK (Right hand)

1шт.

24

S229548

BUSHING

1шт.

24a

S511923

BUSHING

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

2шт.

26

S233811

PIN

, Serial Range: (Link-bucket)

1шт.

27

S610353

LINK

ASSEMBLY

1шт.

28

S512013

BUSHING

2шт.

29

S229548

BUSHING

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

3шт.
