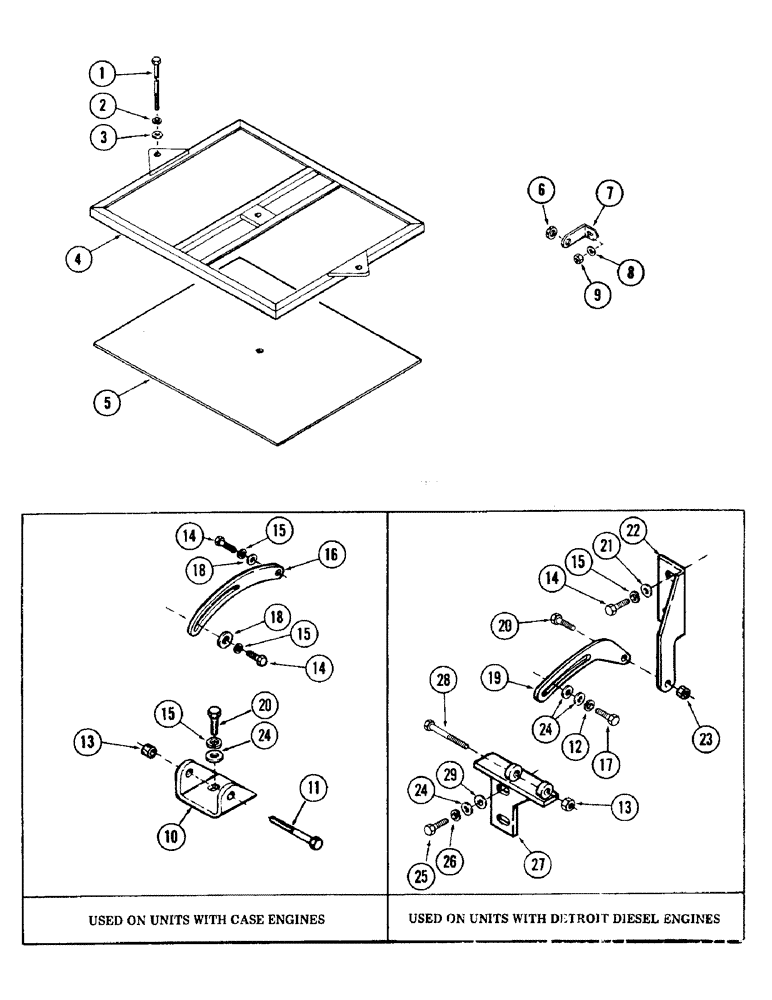

Запчасти Case 40 (290) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE, (USED ON UNITS WITH PIN 6270855 AND AFTER) (55) - ELECTRICAL SYSTEMS

1

S108146

BOLT

- 1/2" x 10-1/2" NC hex - (Grade 5)

3шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

S95569

WASHER

- flat 1/2"

3шт.

4

S511694

BATTERY

BRACKET - battery hold down

1шт.

5

S235290

GASKET

PAD - rubber - (Under batteries)

1шт.

6

S64752

NUT

- (Mounts, Serial Range: horn-bracket)

1шт.

7

S203190

BRACKET

- horn mounting

1шт.

8

195-102

WASHER,1/4"

- flat 1/4"

1шт.

9

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC

1шт.

10

A160391

BRACKET

- alternator mounting

1шт.

11

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3" NC hex - (Grade 5)

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

238535

BRACKET - alternator adjusting

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

195-525

WASHER,3/8", SAE

- flat 7/16"

1шт.

19

S200898

STRAP

BRACKET - alternator

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

21

195-104

WASHER,3/8"

- flat 3/8"

2шт.

22

S236656

BRACKET - alternator adjusting mounting

1шт.

23

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

1шт.

24

195-104

WASHER,3/8"

- flat 7/16"

2шт.

25

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- 7/16" x 1" NC hex - (Grade 5)

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

S225592

BRACKET - alternator mounting

1шт.

28

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

29

195-525

WASHER,3/8", SAE

(Used as shims) 3/8", SAE

1шт.
