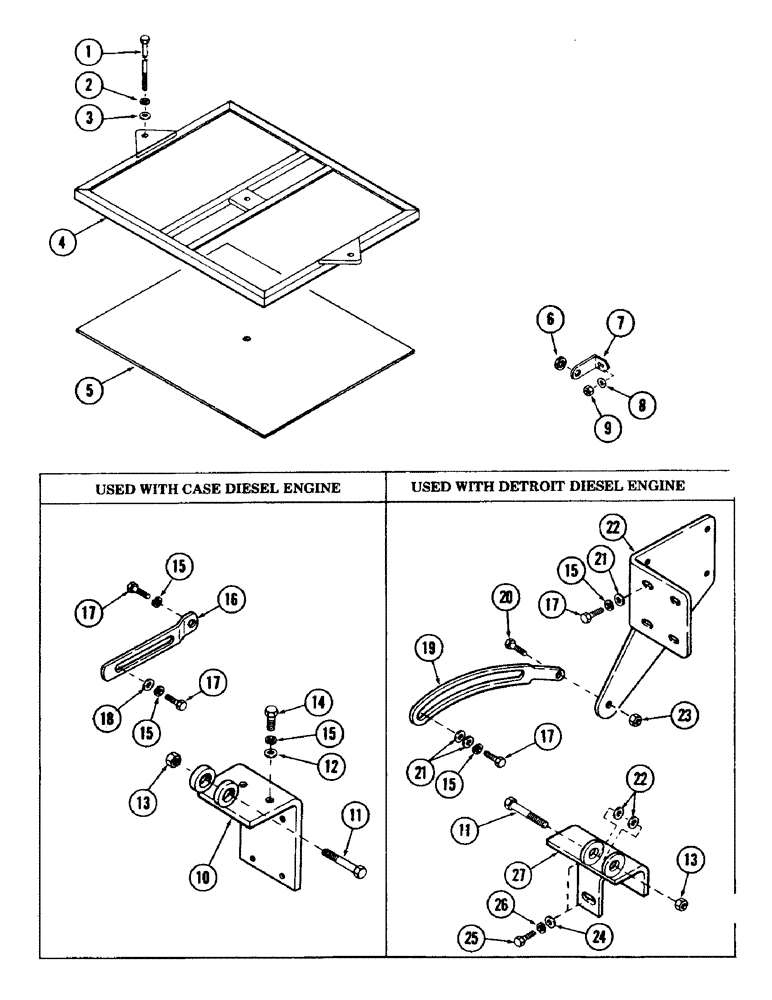

Запчасти Case 40 (288) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE, (USED ON UNITS WITH PIN 6270716 THRU 6270854) (55) - ELECTRICAL SYSTEMS

1

S108146

BOLT

- 1/2" NC x 10-1/2" Gr 5

3шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

S95569

WASHER

flat - 1/2"

3шт.

4

S511694

BATTERY

BRACKET, battery hold down

1шт.

5

S235290

GASKET

PAN, rubber - (Under batteries)

1шт.

6

S64752

NUT

- (Mounts, Serial Range: horn-bracket)

1шт.

7

S203190

BRACKET

horn mounting

1шт.

8

195-102

WASHER,1/4"

flat - 1/4"

1шт.

9

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

10

S235897

BRACKET, alternator mounting

1шт.

11

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

12

195-530

WASHER,7/16"

flat - 1/2"

1шт.

13

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

S114981

BRACKET, alternator adjusting

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

195-525

WASHER,3/8", SAE

flat - 7/16"

1шт.

19

S86288

BRACKET

alternator

1шт.

20

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

21

195-103

WASHER,5/16"

flat - 3/8"

1шт.

22

S513105

BRACKET, alternator adjusting mounting

1шт.

23

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

24

195-104

WASHER,3/8"

flat - 7/16"

2шт.

25

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

WASHER, flat - 7/16"

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

S235738

BRACKET, alternator mounting

1шт.
