(284) - R36587 ALTERNATOR, (USED ON UNITS WITH PIN 6270855 AND AFTER)

Запчасти Case 40 (284) - R36587 ALTERNATOR, (USED ON UNITS WITH PIN 6270855 AND AFTER) (55) - ELECTRICAL SYSTEMS

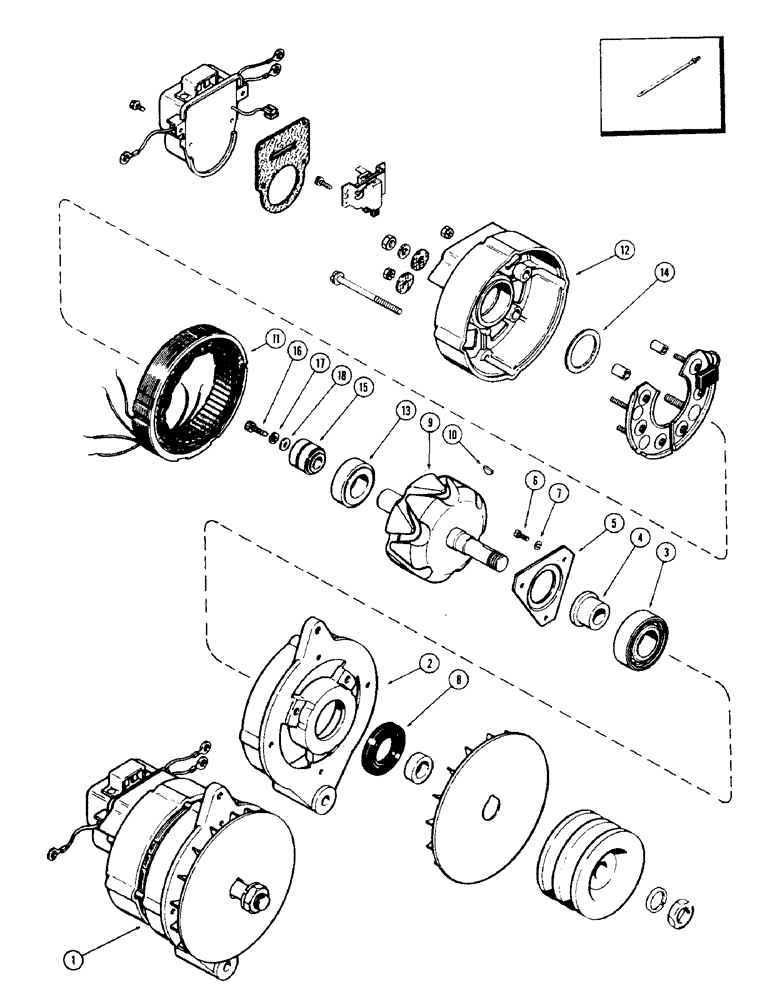

Схема запчастей Case 40 - (284) - R36587 ALTERNATOR, (USED ON UNITS WITH PIN 6270855 AND AFTER) (55) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R36587

ALTERNATOR

ALTERNATOR ASSY - (Production only) (Motorola No. 8HC3017G) (Order 1-A47090 alternator, 1- A1361 pulley, 1-A47167 regulator, 1-A47159 regulator gasket, 2 of 187-1089 and 2 182-519 regulator mounting screws

1шт.

87297298

REMAN-ALTERNATOR

REMANUFACTURED ALTERNATOR ASSY - MOTOROLA 24V 40A - NA Only

1шт.

87297299

CORE-ALTERNATOR

RETURN NO, ALTERNATOR ASSY - MOTOROLA 24V 40A - NA Only

1шт.

1

A47090

ALTERNATOR

ALTERNATOR ASSY - (Service only) (Motorola No. 8HC3017GS) (w/out pulley, regulator, regulator gasket and mounting screws)

1шт.

1

87297298

REMAN-ALTERNATOR

Remanufactured ALTERNATOR - NA Only

1шт.

1

87297299

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

2

A47157

HOUSING

HOUSING - front

1шт.

3

A47163

BALL BEARING,0.983" ID x 2.0467" OD x 0.596"

BEARING - front housing (1" x 2" x 9/16")

1шт.

4

A41052

SLEEVE

SLEEVE - bearing pilot

1шт.

5

A43280

RETAINER

RETAINER - front bearing

1шт.

6

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

SCREW - front retainer (No. 8 - 32 x 3/8" sltd. head)

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

8

A47160

SEAL

SEAL - oil, grease reservoir (1" x 1-7/8" x 5/16")

1шт.

9

A47166

IMPELLER

ROTOR ASSY

1шт.

10

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

11

A47155

STATOR

STATOR ASSY

1шт.

12

A47158

HOUSING

HOUSING - rear

1шт.

13

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - rear housing (11/16" x 1-9/16" x 1/2")

1шт.

14

A47170

RETAINER

RETAIENR - rear bearing (1-9/16" x 1-13/16" x 1/8")

1шт.

15

A44581

RING

RING, slip (Order A44580)

1шт.

16

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - slip ring (No. 10 x 5/8", 12 pt. sckt. head)

1шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

18

A44788

WASHER

WASHER - slip ring bearing screw

1шт.
