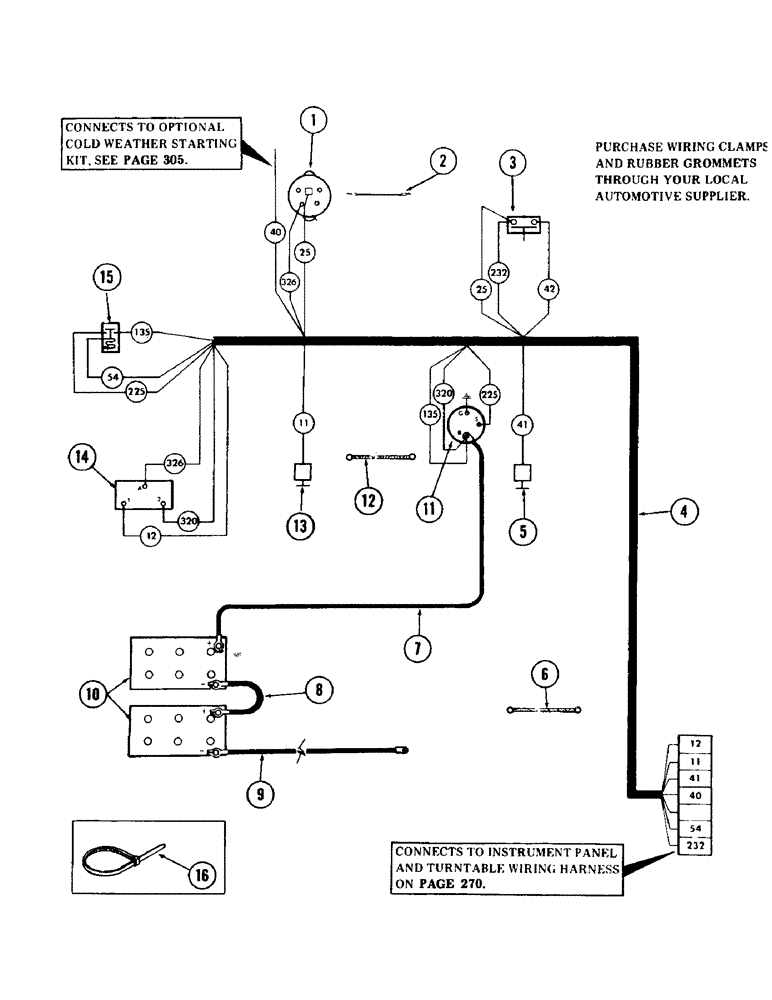

Запчасти Case 40 (280) - ENGINE WIRING HARNESS FOR: DETROIT DIESEL 4-71 ENGIN,(USED ON UNITS WITH PIN 6270716 THRU 6270854) (55) - ELECTRICAL SYSTEMS

1

S512737

ALTERNATOR

- 12 volt with regulator

1шт.

S113988

REGULATOR

1шт.

A44678

PULLEY

1шт.

223-166

CONNECTOR, ELEC

CONNECTOR, female body

1шт.

2

S203988

WIRE, jumper - 12 gauge x 8" long - (Alternator ground to engine) - (Use existing mounting hardware)

1шт.

3

S63884

SWITCH

pressure -, Serial Range: (Mounts-tee)

1шт.

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - 1/4" NPT male x 1/8" NPT female - (Into engine)

1шт.

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

ADAPTER - 1/8" NPT male x 1/8" NPT male - (Into bushing)

1шт.

217-1160

TEE,1/8"-27 Female

- 1/8" NPT female x 1/8" NPT female x 1/8" NPT female - (Onto adapter)

1шт.

4

S612864

WIRING HARNESS, engine

1шт.

S99515

PLUG

CONNECTOR, electrical - (9 contract) - (Male)

1шт.

5

S108398

TRANSMITTER

SENDING UNIT, oil pressure

1шт.

6

S81445

CABLE, ground -, Serial Range: (Engine-turntable)

1шт.

195-525

WASHER,3/8", SAE

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

7

S223593

CABLE PULLING GRIP

CABLE, battery -, Serial Range: (Starter-battery)

1шт.

8

S235493

NEG BATTERY CABLE

CABLE, battery -, Serial Range: (Battery-battery)

1шт.

9

S234973

CABLE PULLING GRIP

CALBE, battery - (Battery ground to starter ground)

1шт.

10

A145205

WET BATTERY

- (Dry)

2шт.

11

STARTER - (Furnished with engine)

1шт.

12

S81445

CABLE, ground - (Starter, Serial Range: ground-engine)

1шт.

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

195-525

WASHER,3/8", SAE

flat - 7/16"

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

13

S108396

SENDER UNIT

SENDING UNIT, engine temperature

1шт.

14

S229871

BOX

CONTROL, dual voltage charge - 12/24 volt

1шт.

174-97

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

machine - No. 10 NF x 1/2"

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

129-37

NUT,#10-32

4шт.

15

S26663

SOLENOID

RELAY - (Mounts to item 23 on Figure 076)

1шт.

195-516

WASHER,#12

flat - 1/4" NC

2шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

16

S73387

CLIP

TIE, cable - (Used to secure battery cables and wiring harness)

1шт.
