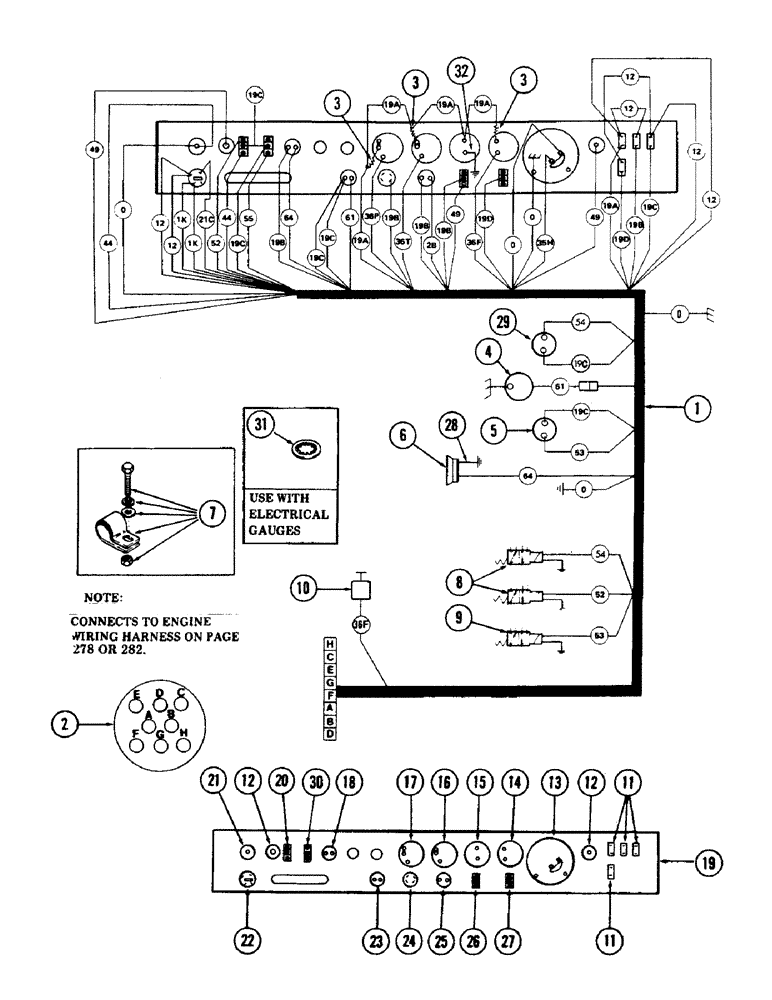

Запчасти Case 40 (272) - INSTRUMENT PANEL AND TURNTABLE WIRING HARNESS, (USED ON UNITS WITH PIN 6270855 AND AFTER) (55) - ELECTRICAL SYSTEMS

1

S614355

WIRING HARNESS - instrument panel and cab

1шт.

2

S107664

CONNECTOR - electrical, 8 contact

1шт.

3

S108406

RESISTOR

3шт.

129-37

NUT,#10-32

3шт.

193-26

LOCK WASHER,Int Tooth, #10

WASHER - flat No. 10

3шт.

4

REF

INSTRUCTION

HEATER - (See Figure 302)

1шт.

5

S238765

SWITCH

- fast hoist push button

1шт.

6

L10353

HORN

1шт.

S203190

BRACKET

- horn mounting

1шт.

S64752

NUT

-, Serial Range: (Horn-bracket)

1шт.

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC (Mounts bracket)

2шт.

195-102

WASHER,1/4"

- flat 1/4"

2шт.

7

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- wiring harness mounting

4шт.

195-102

WASHER,1/4"

- flat 1/4"

4шт.

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC hex

2шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

S237942

VALVE

- solenoid cartridge (Used with drive brake and drive lock circuits)

2шт.

S238309

DIODE

1шт.

9

S237942

VALVE

- solenoid cartridge (Used with fast hoist circuit)

1шт.

S238309

DIODE

1шт.

10

SENDING UNIT - (See ref. 4 on Figure 082)

1шт.

11

S115714

BREAKER

- circuit

4шт.

12

S28822

LAMP

LIGHT - instrument panel

2шт.

T39535

BULB

- light

2шт.

13

S514333

HOURMETER

1шт.

A27780

FLANGE

DAMPER

1шт.

173-62

SCREW - machine No.

3шт.

192-13

WASHER,#4

Lock, #4

3шт.

129-15

NUT,#6-32

- No. 4

3шт.

14

S108399

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

15

S237893

VOLTMETER

GAUGE - voltmeter

1шт.

16

S108395

GAUGE

- engine temperature

1шт.

17

S108397

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

18

D34924

SWITCH

BUTTON - horn

1шт.

19

PANEL - instrument (See ref. 2 on Figure 092)

1шт.

20

S108079

SWITCH

- drive plate

1шт.

21

S96034

LIGHT

- brake warning

1шт.

S97035

BULB

- light

1шт.

22

S108413

SWITCH

- key

1шт.

D36822

KEY

- ignition - (Not illustrated)

1шт.

23

SWITCH - heater (See ref. 11 on Figure 302)

1шт.

24

S225028

IGNITION SWITCH

SWITCH - windshield wiper

1шт.

D80343

KNOB - wiper switch

1шт.

25

D34924

SWITCH

BUTTON - cold start (Optional)

1шт.

26

S88636

IGNITION SWITCH

SWITCH - panel light

1шт.

27

S88636

IGNITION SWITCH

SWITCH - work light (Optional)

1шт.

28

S228788

WIRE - jumper - (Horn ground)

1шт.

29

S238765

SWITCH

- crawler detent

1шт.

S68002

GROMMET,7/16" ID x 11/16" Groove Dia

1шт.

30

S88636

IGNITION SWITCH

SWITCH - drive range

1шт.

31

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

20шт.

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

20шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock - 1/4" - (Internal tooth)

20шт.

32

S206233

ELECTRICAL WIRE

WIRE - jumper (Voltmeter ground)

1шт.
