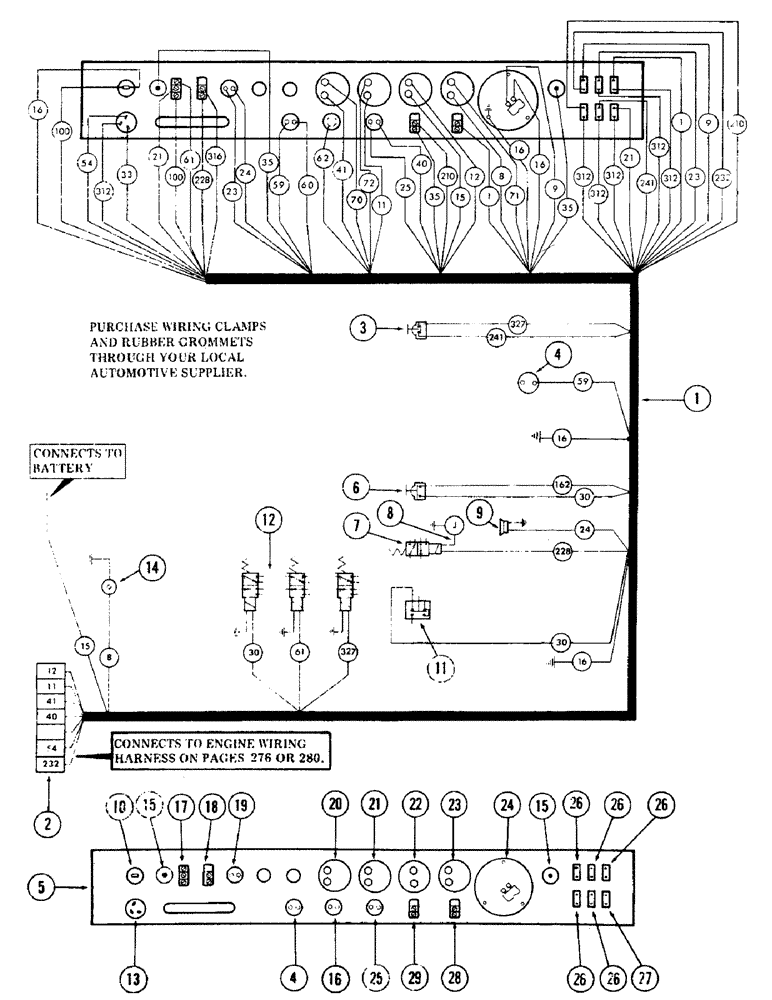

Запчасти Case 40 (270) - INSTRUMENT PANEL AND TURNTABLE WIRING HARNESS, (USED ON UNITS WITH PIN 6270716 THRU 6270854) (55) - ELECTRICAL SYSTEMS

1

S612911

HARNESS

WIRING HARNESS, instrument panel and turntable

1шт.

2

S99519

CONTAINER

CONNECTOR, electrical - (9 contact) - (Female)

1шт.

3

S235948

SWITCH

drive lock - (In right control handle)

1шт.

4

REF

INSTRUCTION

SWITCH, heater - (See item 11 on Figure 302) - (Furnished with heater) - (Optional)

1шт.

5

REF

INSTRUCTION

PANEL, instrument - (See item 2 on Figure 092)

1шт.

6

S235948

SWITCH

BUTTON, fast hoist - (In left control handle)

1шт.

7

REF

INSTRUCTION

VALVE, hi-low range (For breakdown, see Figure 248 or 250)

1шт.

8

S206378

ELECTRICAL WIRE

WIRE, jumper - 14 gauge wire x 4" long - (Optional)

1шт.

9

S203189

HORN

1шт.

10

S96034

LIGHT

brake warning

1шт.

S97035

BULB

light

1шт.

11

S231452

VALVE

SWITCH, fast hoist cut out pressure

1шт.

12

REF

INSTRUCTION

VALVE, solenoid cartridge - (Used with fast hoist, drive brake and drive lock circuits) - (For breakdown, see Figure 244 or 246)

3шт.

13

S108413

SWITCH

ingition

1шт.

D36822

KEY

ignition - (Not illustrated)

1шт.

14

REF

INSTRUCTION

SENDING UNIT, fuel gauge - (See item 4 on Figure 082)

1шт.

15

S28822

LAMP

LIGHT, panel

2шт.

71421

BULB,R5W, 12V, 5W

light

2шт.

16

D34924

SWITCH

BUTTON, cold start - (Optional)

1шт.

17

S108079

SWITCH

drive brake

11шт.

18

S88636

IGNITION SWITCH

SWITCH, drive range - (Optional)

1шт.

19

D34924

SWITCH

BUTTON, horn

1шт.

20

S108397

ELECTRICAL GAUGE

GUAGE, oil pressure

1шт.

21

S108395

GAUGE

engine temperature

1шт.

22

S110893

AMMETER

GAUGE, ammeter

1шт.

23

S108399

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

24

S514333

HOURMETER

- (Supersedes S213391)

1шт.

A27780

FLANGE

DAMPER

1шт.

173-62

SCREW, machine - No. 6 NC x 9/16"

3шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

129-15

NUT,#6-32

3шт.

25

S225028

IGNITION SWITCH

SWITCH, wiper

1шт.

D80343

KNOB, wiper switch

1шт.

26

S231439

CIRCUIT-BREAKER

BREAKER, circuit (15 amp)

5шт.

27

S231437

BREAKER

circuit - (25 amp)

1шт.

28

S88636

IGNITION SWITCH

SWITCH, work light - (Optional)

1шт.

29

S88636

IGNITION SWITCH

SWITCH, panel lights

1шт.
