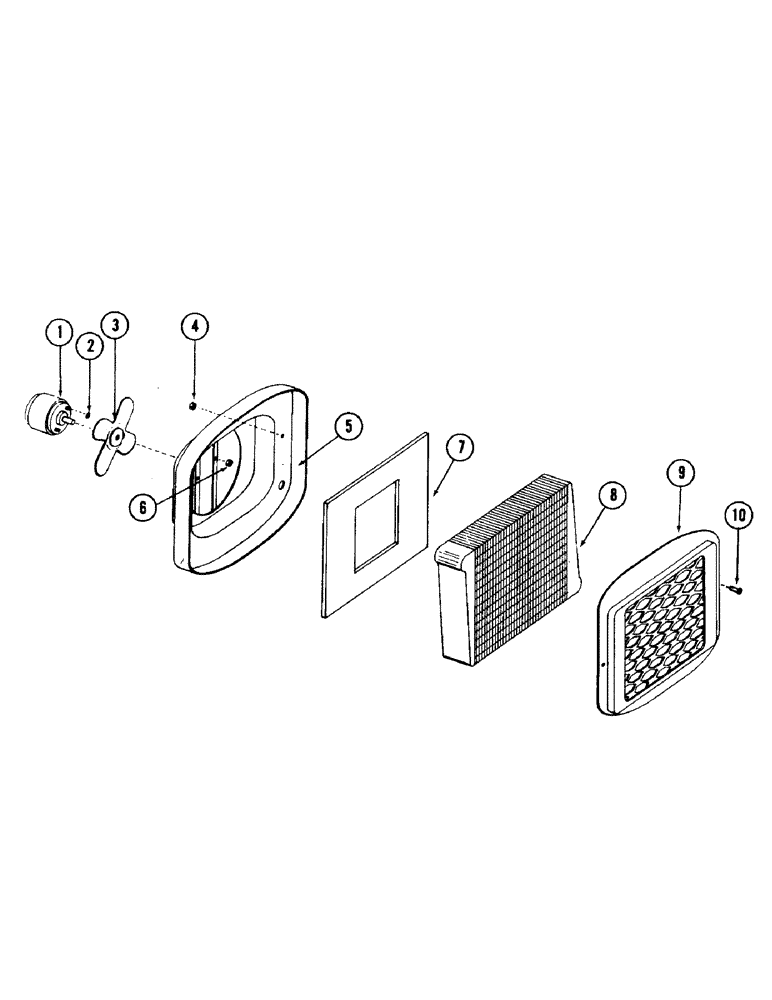

Запчасти Case 40 (302) - HEATER, (USED ON UNITS WITH PIN 6270716 THRU 6270854) (50) - CAB CLIMATE CONTROL

S39842

HEATER (12V)

1шт.

1

A44571

MOTOR, ELECTRIC

MOTOR

1шт.

2

L30905

WASHER

1шт.

3

S87351

FAN

1шт.

4

129-18

NUT,#12-24

2шт.

5

S87348

CASE

CASING ASSEMBLY

1шт.

6

225-14208

NUT,#8-36

2шт.

7

S87354

PAD

2шт.

8

S87350

HEAT-EXCHANGER

CORE

1шт.

9

S87349

BAFFLE

1шт.

10

S87352

SCREW

2шт.

11

S87356

SWITCH

ASSEMBLY (Not illustrated)

1шт.

S507825

HEATER

(24 V), (used on units with P.I.N. 6270855 and after)

1шт.

1

D54871

MOTOR

heater (used on units with P.I.N. 6270855 and after)

1шт.

2

L35760

WASHER

heater (used on units with P.I.N. 6270855 and after)

1шт.

3

S97849

FAN

heater (used on units with P.I.N. 6270855 and after)

1шт.

4

129-18

NUT,#12-24

heater (used on units with P.I.N. 6270855 and after)

2шт.

5

S97846

CASING

ASSEMBLY, heater (used on units with P.I.N. 6270855 and after)

1шт.

6

225-14208

NUT,#8-36

heater (used on units with P.I.N. 6270855 and after)

2шт.

7

S87354

PAD

heater (used on units with P.I.N. 6270855 and after)

2шт.

8

S87350

HEAT-EXCHANGER

CORE, heater (used on units with P.I.N. 6270855 and after)

1шт.

9

S97848

BAFFLE

heater (used on units with P.I.N. 6270855 and after)

1шт.

10

S87352

SCREW, heater (used on units with P.I.N. 6270855 and after)

2шт.

11

S97852

SWITCH

ASSEMBLY (Not illustrated), heater (used on units with P.I.N. 6270855 and after)

1шт.
