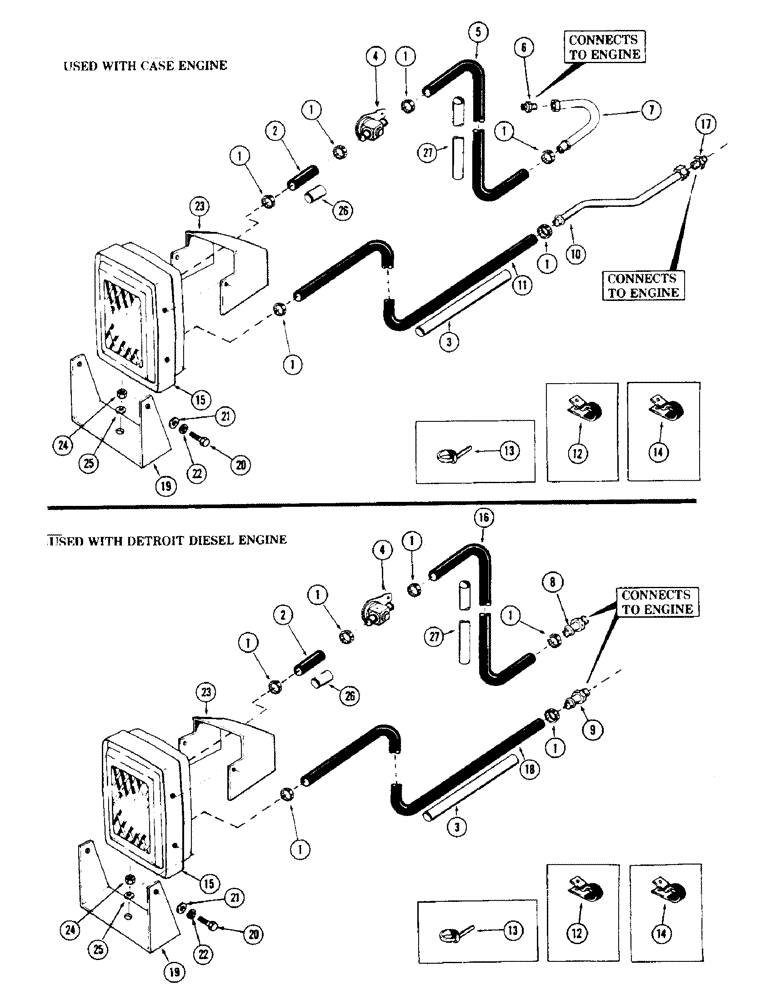

Запчасти Case 40 (300) - HEATER AND HOSES (50) - CAB CLIMATE CONTROL
№
Артикул
Название
Примечание
Количество
1
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP
6шт.
2
S49608
HOSE
- low pressure (Bulk) 1 piece - 5/8" ID x 4" long
1шт.
3
S113778
CONDUIT (22")
1шт.
4
S223937
VALVE
- heater
1шт.
5
S49608
HOSE
- low pressure (Bulk) 1 piece - 5/8" ID x 136" long
1шт.
6
218-1026
HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF
ADAPTER (5/8" tube) - 7/8" - 14 male x 3/8" NPT male - 37 degrees flared
1шт.
7
S232219
TUBE,0.62" OD x 3.06, 4.68" L
- coolant
1шт.
8
217-153
FITTING,5/8" Hose Barb x 1/2" Male NPTF
INSERT - hose - 5/8" ID hose x 1/2" NPT male
1шт.
9
217-376
FITTING,5/8" Hose Barb x 3/8" Male NPTF
INSERT - hose - 5/8" ID hose x 3/8" NPT male
1шт.
10
S231777
TUBE,0.62" OD x 3.85, 34.05" L
- coolant
1шт.
11
S49608
HOSE
- low pressure (Bulk) 1 piece - 5/8" ID x 121" long
1шт.
12
R14668
CLAMP
(Secures hoses under floor plate and engine flywheel) (Use existing hardware to mount 3 clamps)
4шт.
131-52
NUT,3/8"-16, GC
NUT - lock - 3/8" NC (Use with clamp to stud)
1шт.
195-525
WASHER,3/8", SAE
- flat, 3/8"
1шт.
13
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP, CABLE
1шт.
14
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
(Secures tube to engine block)
2шт.
15
REF
INSTRUCTION
HEATER (For breakdown, see Figure 304)
1шт.
16
S49608
HOSE
- low pressure (Bulk) 1 piece - 5/8" ID x 150" long
1шт.
17
218-457
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF
ADAPTER (5/8" Long) - 7/8" - 14 male x 3/4" NPT male - 37 degrees flared
1шт.
18
S49608
HOSE
- low pressure (Bulk) 1 piece - 5/8" ID x 150" long
1шт.
19
S513714
BRACKET - heater support
1шт.
20
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
21
195-518
WASHER,1/4", SAE
flat - 1/4"
4шт.
22
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
23
S237006
SHROUD - heater
1шт.
25
195-104
WASHER,3/8"
- flat 3/8"
1шт.
26
S113778
CONDUIT (Bulk) 3"
1шт.
27
S113778
CONDUIT (Bulk) 18"
1шт.
Выбрано товаров: 29
