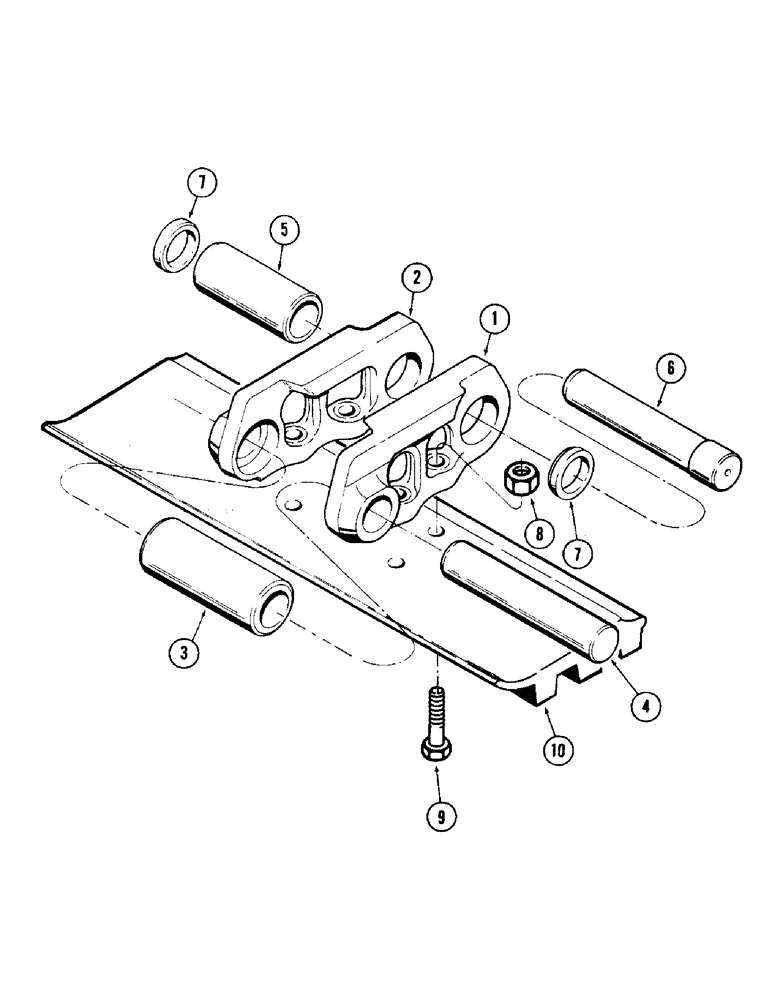

Запчасти Case 40 (062) - TRACK SHOES, LINKS AND PINS (48) - TRACKS & TRACK SUSPENSION

S607785

TRACK CHAIN

TRACK ASSEMBLY WITH 24" 3 BAR GROUSER SHOES

1шт.

S612991

TRACK CHAIN

TRACK ASSEMBLY WITH 30" 3 BAR GROUSER SHOES

1шт.

The above track assemblies as shown are for one side only, two assemblies are required per machine.

1шт.

S229282

CHAIN (CE)

CHAIN LINK ASSEMBLY

1шт.

1

S105786

LINK ASSY.

LINK, track (Right hand)

47шт.

2

S105787

LINK ASSY.

LINK, track (Left hand)

47шт.

3

S105788

BUSHING

master

1шт.

4

S105789

PIN

46шт.

5

S105790

BUSHING

46шт.

6

S105792

AXLE PIN

PIN, master

1шт.

7

S105791

COLLAR

master bushing

2шт.

8

S108929

NUT

(Supersedes S105795)

188шт.

9

S108928

BOLT

(Supersedes S105794)

188шт.

10

S105793

SHOE

24" triple grouser (Used with S607785 track assembly)

47шт.

S115589

SHOE

30" triple grouser (Use with S612991 track assembly)

47шт.
