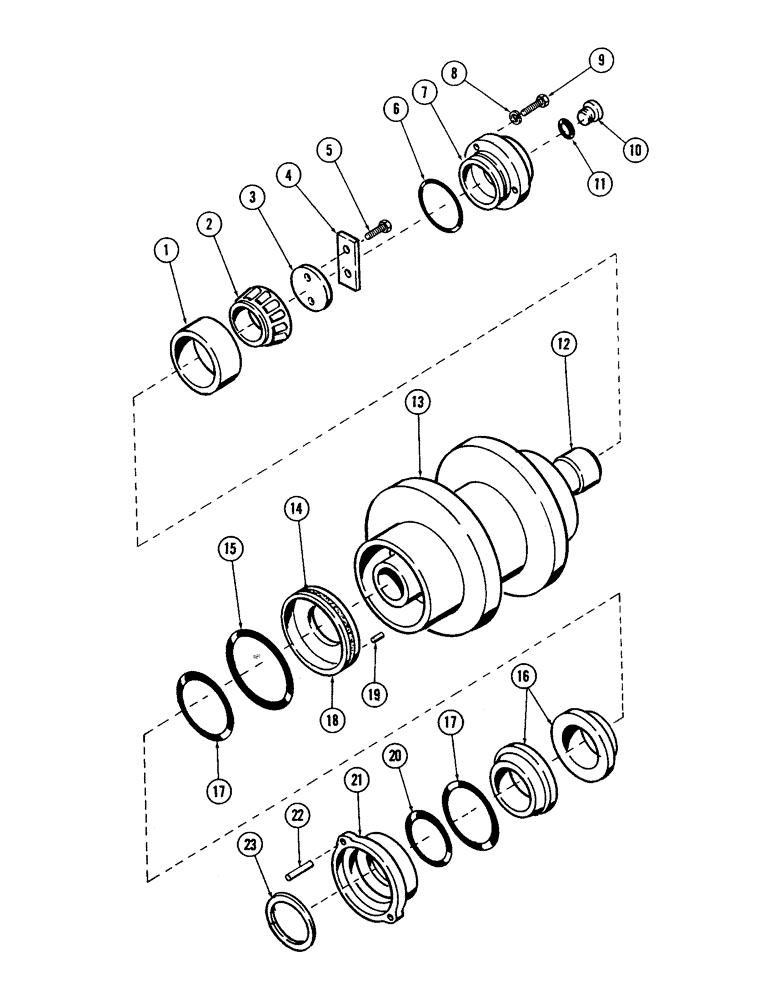

Запчасти Case 40 (060) - DOUBLE FLANGE TRACK ROLLER (48) - TRACKS & TRACK SUSPENSION

S233033

ROLLER

double flange track (See note on bottom of page)

4шт.

1

S115336

ROLLER BEARING

CUP, bearing

2шт.

2

S115335

BEARING, ROLLER

CONE, bearing

2шт.

3

S115326

PLATE

1шт.

4

S115325

LOCK

1шт.

5

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - 3/8" NF x 7/8" Gr 8

2шт.

6

S115324

SEAL

1шт.

7

S115323

SPACER

COVER

1шт.

8

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" Gr 8

3шт.

10

S113081

PLUG

1шт.

11

S64691

SEAL

1шт.

12

S115327

SHAFT

1шт.

13

S115328

ROLLER

1шт.

14

S115337

CORK

2шт.

15

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

1шт.

16

S95098

SEAL

ASSEMBLY

1шт.

17

S97896

RING

(Rubber)

2шт.

18

S115329

SUPPORT

ASSEMBLY

1шт.

19

S115330

DOWEL

2шт.

20

S115334

SEAL,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

21

S115332

COLLAR

ASSEMBLY

1шт.

22

S115333

DOWEL

2шт.

23

S115331

RING

1шт.
