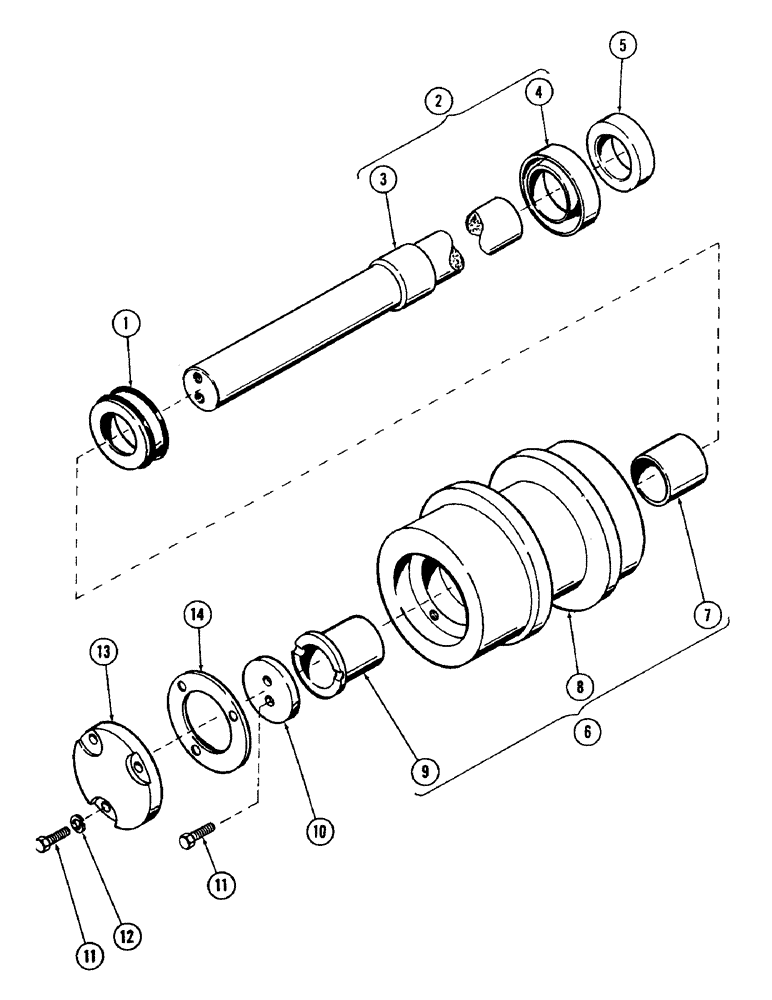

Запчасти Case 40 (058) - DOUBLE FLANGE TRACK ROLLER (48) - TRACKS & TRACK SUSPENSION

S233033

ROLLER

double flange track (See note on bottom of page)

4шт.

1

S115321

SEAL

1шт.

2

S115319

SHAFT

ASSEMBLY

1шт.

3

S115320

SHAFT

1шт.

4

R33962

RETAINER

SLEEVE

1шт.

5

S115322

SPACER

1шт.

6

S115317

ROLLER

SHELL ASSEMBLY

1шт.

7

R33958

BUSHING

1шт.

8

S115318

SHELL

roller

1шт.

9

R33951

BUSHING

SHELL, roller

1шт.

10

R33960

PLATE

WASHER, thrust

1шт.

11

513-704

BOLT

5шт.

12

D32117

COPPER WASHER

WASHER, COPPER, Lock

3шт.

13

R33959

CYLINDER END CAP

COVER

1шт.

14

R33964

GASKET

1шт.
