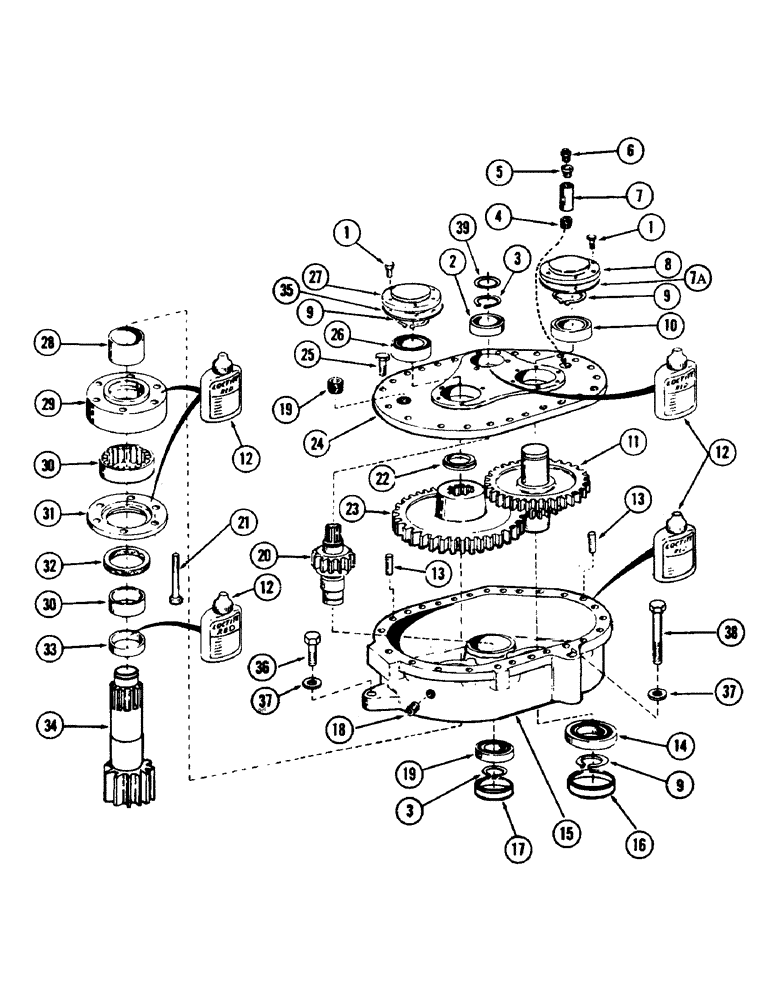

Запчасти Case 40 (120) - SWING REDUCER, (USED ON UNITS WITH SERIAL NUMBER 6270825 AND AFTER) (39) - FRAMES AND BALLASTING

S955796

REDUCER

swing (Before ordering parts see note on Figures 116 Art and 118 Art)

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING, reducer - 3/8" NPT male x 1/8" NPT female

1шт.

6

L33264

BREATHER

VENT, breather

1шт.

7

S216625

TUBE,60" L

oil breather

1шт.

7a

S103261

GASKET

1шт.

8

S402194

CAP

bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

11

S612548

GEAR

cluster (Intermediate)

1шт.

12

A96077

LOCTITE, 10 CC bottle (Red) (Replaces gaskets) (Substitutes must not be used)

1шт.

13

S97539

DOWEL

2шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

S615133

PACKAGE

KIT, swing reducer housing

1шт.

15

S613678

CASE

gear

1шт.

16

S114620

PLUG

expansion

1шт.

17

S114619

PLUG

expansion

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT (Socket head)

2шт.

19

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

20

S612550

SHAFT

PINION AND SHAFT, input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" NC x 3-1/4" Gr 8

6шт.

22

S235525

SPACER

, Serial Range: bearing-gear

1шт.

23

S612546

GEAR

drive

1шт.

24

S612551

COVER

gear case

1шт.

25

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" NC x 1-3/4" Gr 8

22шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, roller (Supersedes S98375)

1шт.

27

S214012

CAP

bearing

1шт.

28

S235526

SPACER

1шт.

29

S508461

RETAINER

roller bearing

1шт.

30

S112817

ROLLER BEARING,75mm ID x 130mm OD x 41.28mm W

BEARING AND RACE ASSEMBLY

1шт.

31

S508460

RETAINER

oil seal

1шт.

32

S98415

OIL SEAL

oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S612544

SHAFT

AND GEAR, output

1шт.

35

S85842

GASKET

1шт.

36

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" NC x 2" Gr 8

1шт.

37

S92341

WASHER

flat - 7/8" (Hardened steel)

3шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" NC x 5-3/4" Gr 8

2шт.

39

S238616

GASKET

swing brake

1шт.
