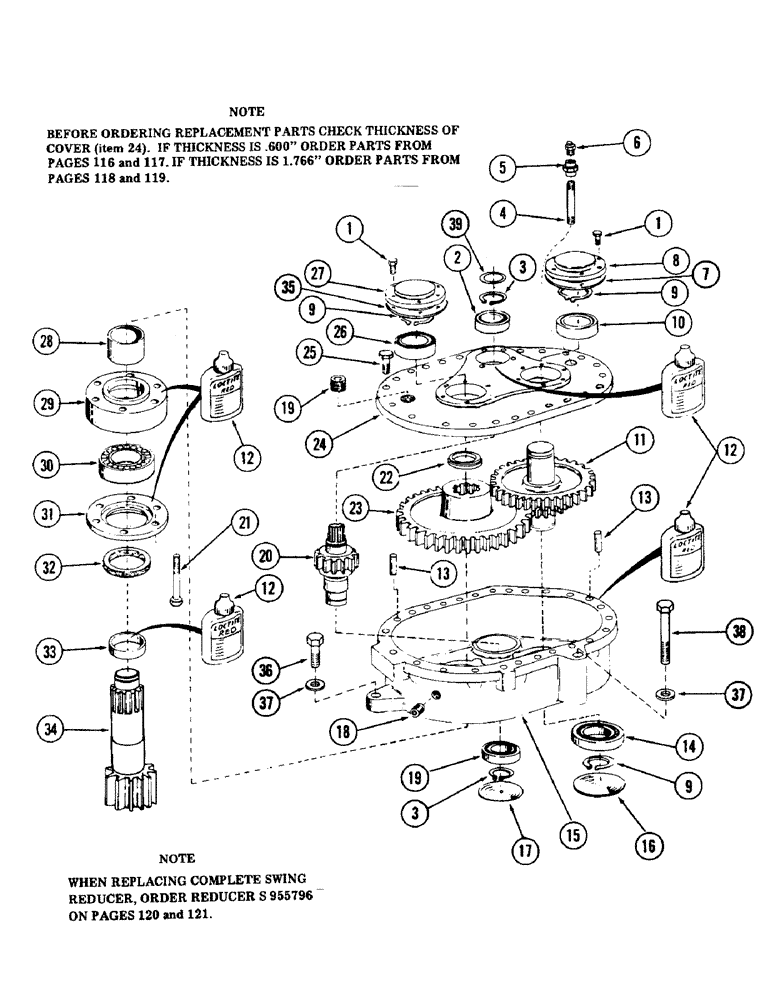

Запчасти Case 40 (118) - SWING REDUCER, (USED ON UNITS WITH PIN 6270716 THRU 6270824) (39) - FRAMES AND BALLASTING

REDUCER, swing (Before ordering parts, see note on Figure 118 Art)

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

S86224

NIPPLE, LUBE

NIPPLE - 3/8" NPT x 7" long

1шт.

5

S112832

CONNECTOR, pipe

1шт.

6

L34037

BOLT

VENT, breather

1шт.

7

S103261

GASKET

1шт.

8

S402194

CAP

bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

11

S612548

GEAR

cluster (Intermediate

1шт.

12

B17423

LOCTITE

- 10 CC bottle (Red) (Replaces gaskets) (Substitutes must not be used)

1шт.

13

S64319

CALIPER

DOWEL

2шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

S615133

PACKAGE

KIT, swing reducer housing

1шт.

15

S613678

CASE

gear

1шт.

16

S114620

PLUG

expansion

1шт.

17

S114619

PLUG

expansion

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT (Socket head)

2шт.

19

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

20

S612550

SHAFT

PINION AND SHAFT, input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" NC x 3-1/4" Gr 8

6шт.

22

S235525

SPACER

, Serial Range: bearing-gear

1шт.

23

S612546

GEAR

drive

1шт.

24

S612551

COVER

gear case

1шт.

25

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" NC x 1-1/4" Gr 8

23шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, ball (Supersedes S98375)

1шт.

27

S214012

CAP

bearing

1шт.

28

S235526

SPACER

1шт.

29

S508461

RETAINER

roller bearing

1шт.

30

S112817

ROLLER BEARING,75mm ID x 130mm OD x 41.28mm W

BEARING AND RACE ASSEMBLY

1шт.

31

S508460

RETAINER

oil seal

1шт.

32

S98415

OIL SEAL

oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S612544

SHAFT

AND GEAR, ouput

1шт.

36

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" NC x 2" Gr 8

1шт.

37

S92341

WASHER

flat - 7/8" (Hardened steel)

3шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" NC x 5-3/4" Gr 8

2шт.
