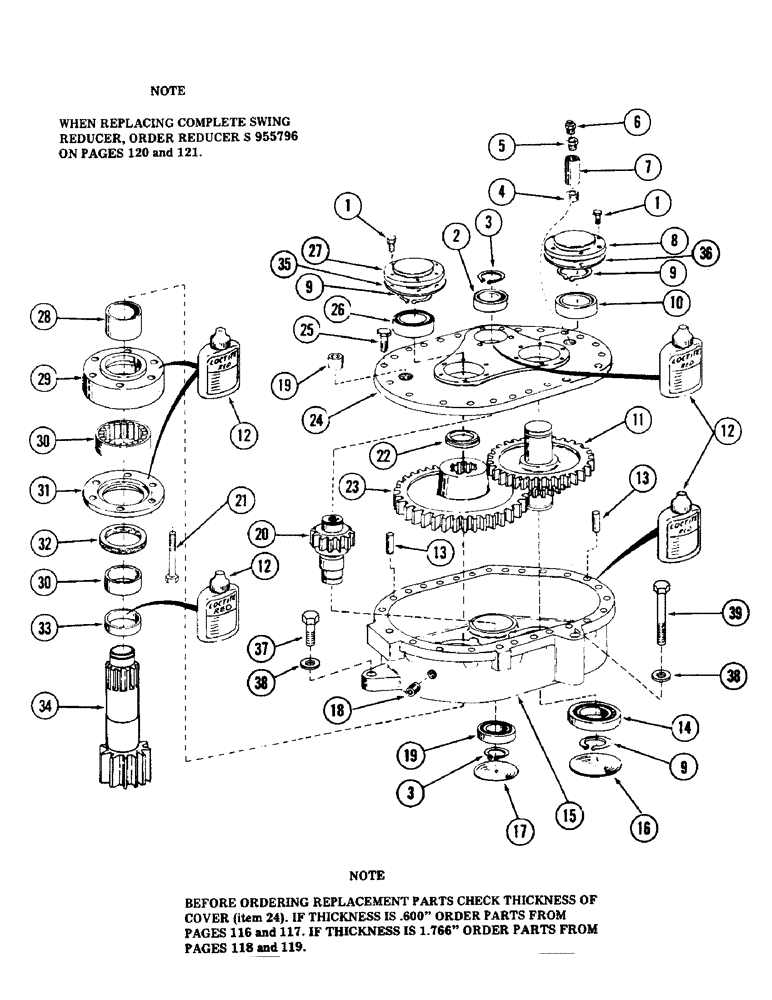

Запчасти Case 40 (116) - SWING REDUCER, (USED ON UNITS WITH PIN 6270716 THRU 6270824) (39) - FRAMES AND BALLASTING

REDUCER, swing (Before ordering parts, see notes on Figure 116 Art)

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-1158

FITTING

NIPPLE - 3/8" NPT x 1" long

1шт.

5

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING, reducer - 3/8" NPT male x 1/8" NPT female

1шт.

6

L34037

BOLT

VENT, breather

1шт.

7

S216625

TUBE,60" L

oil breather

1шт.

8

S402194

CAP

bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

11

S603733

GEAR

cluster (Intermediate)

1шт.

12

B17423

LOCTITE

- 10 CC bottle (Red) (Replaces gaskets) (Substitutes must not be used)

1шт.

13

S64319

CALIPER

DOWEL

2шт.

14

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

S615133

PACKAGE

KIT, swing reducer housing

1шт.

15

S613678

CASE

gear

1шт.

16

S114620

PLUG

expansion

1шт.

17

S114619

PLUG

expansion

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT (Socket head)

2шт.

19

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

20

S609333

SHAFT

PINION AND SHAFT, input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" NC x 3-1/4" Gr 8

6шт.

22

S214014

SPACER

, Serial Range: bearing-gear

1шт.

23

S603736

GEAR

drive

1шт.

24

S603758

COVER

gear case

1шт.

25

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, ball (Supersedes S98375)

1шт.

27

S214012

CAP

bearing

1шт.

28

S225231

SPACER

1шт.

29

S508461

RETAINER

roller bearing

1шт.

30

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING AND RACE ASSEMBLY

1шт.

31

S508460

RETAINER

oil seal

1шт.

32

S98415

OIL SEAL

oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S606286

SHAFT

AND GEAR, output

1шт.

35

S85842

GASKET

1шт.

36

S103261

GASKET

1шт.

37

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" NC x 2" Gr 8

1шт.

38

S92341

WASHER

flat - 7/8" (Hardened steel)

3шт.

39

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" NC x 5-3/4" Gr 8

2шт.
