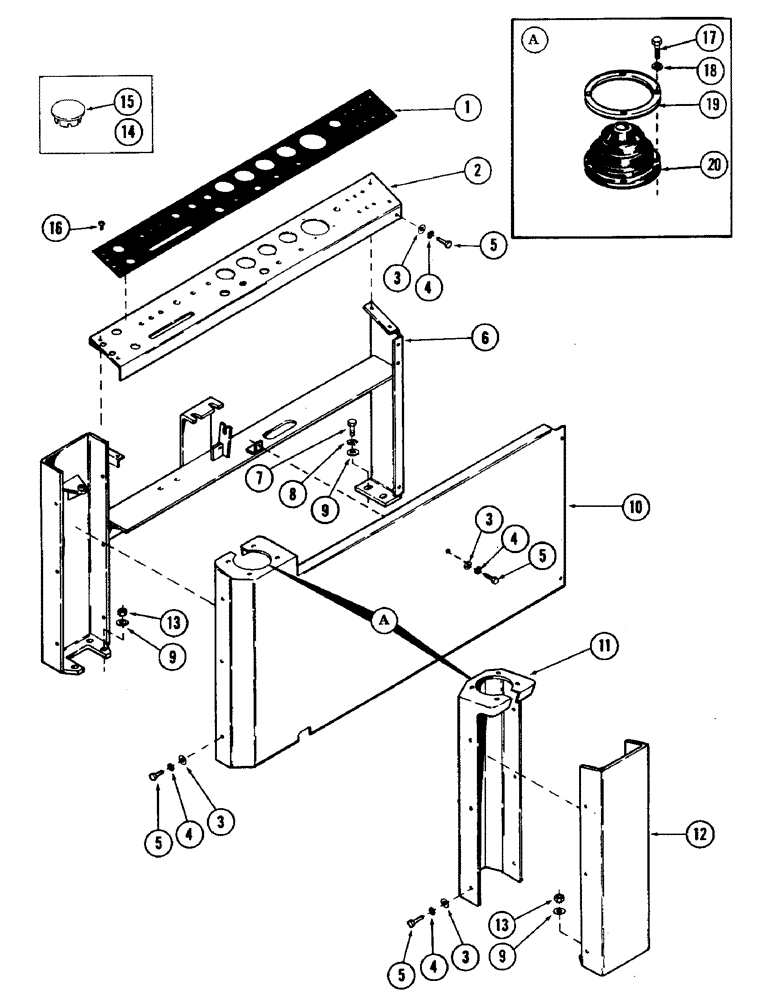

Запчасти Case 40 (092) - INSTRUMENT PANEL AND SUPPORT FOR HAND CONTROLS (39) - FRAMES AND BALLASTING

1

S612986

DECAL

instrument panel

1шт.

2

S612985

PANEL, instrument

1шт.

3

195-101

WASHER,3/16"

flat - 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

6

S610657

SUPPORT AND FRAME, right control

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

195-33

WASHER,1/2"

flat - 1/2"

10шт.

10

S610679

COVER, right control panel

1шт.

11

S610678

COVER, left control panel

1шт.

12

S511068

SUPPORT

left control

1шт.

13

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

8шт.

14

S109945

PLUG

hole - 1/2" dia. (Used to plug hole in instrument panel when optional work lights or drive range is not used)

2шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

hole - 5/8" dia. (Used to plug hole in instrument panel when emergency shut-off or cold start is not used)

2шт.

16

187-1812

SCREW - self tapping - No. 6 NF x 1/4"

10шт.

17

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

machine - No. 10 NF x 5/8"

8шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

19

S108804

RING

mounting

2шт.

20

S232150

BOOT

rubber

2шт.
