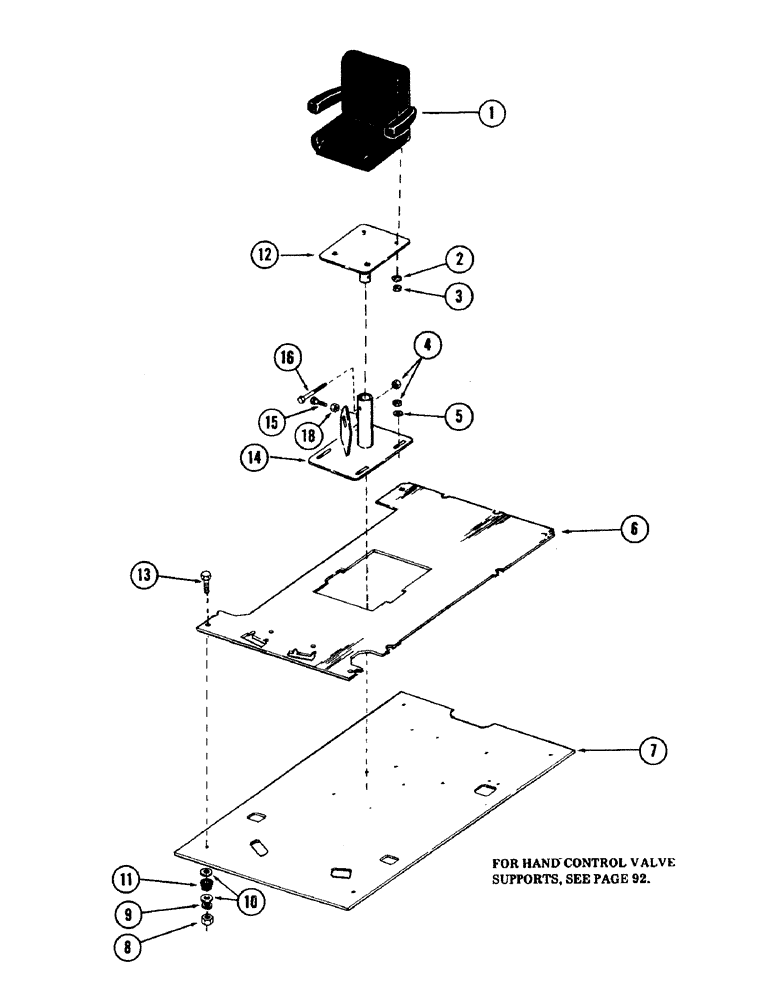

Запчасти Case 40 (088) - TURNTABLE ATTACHING PARTS INSIDE OF OPERATORS CAB (39) - FRAMES AND BALLASTING

1

REF

INSTRUCTION

SEAT ASSEMBLY (For breakdown, see Figure 090)

1шт.

2

195-103

WASHER,5/16"

Flat - 3/8"

4шт.

3

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

NUT, self locking - 5/16" NC

4шт.

4

131-70

NUT,1/2"-13, GB

5шт.

5

S95569

WASHER

Flat - 1/2"

4шт.

6

S615051

FLOOR MAT

(Supersedes S612923)

1шт.

7

S956073

SPARE PART (Supersedes S955637)

1шт.

8

131-450

NUT,3/4"-10

4шт.

9

195-2270

WASHER,13/16" x 3" x .238", HDN

Flat - 3/4"

4шт.

10

S114915

WASHER

Flat - 3/4"

3шт.

11

S112578

MOUNTING PARTS

Center bonded

4шт.

12

S513120

SPARE PART Seat mounting (Upper)

1шт.

13

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

14

S612856

SPARE PART Seat mounting (Lower)

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.
