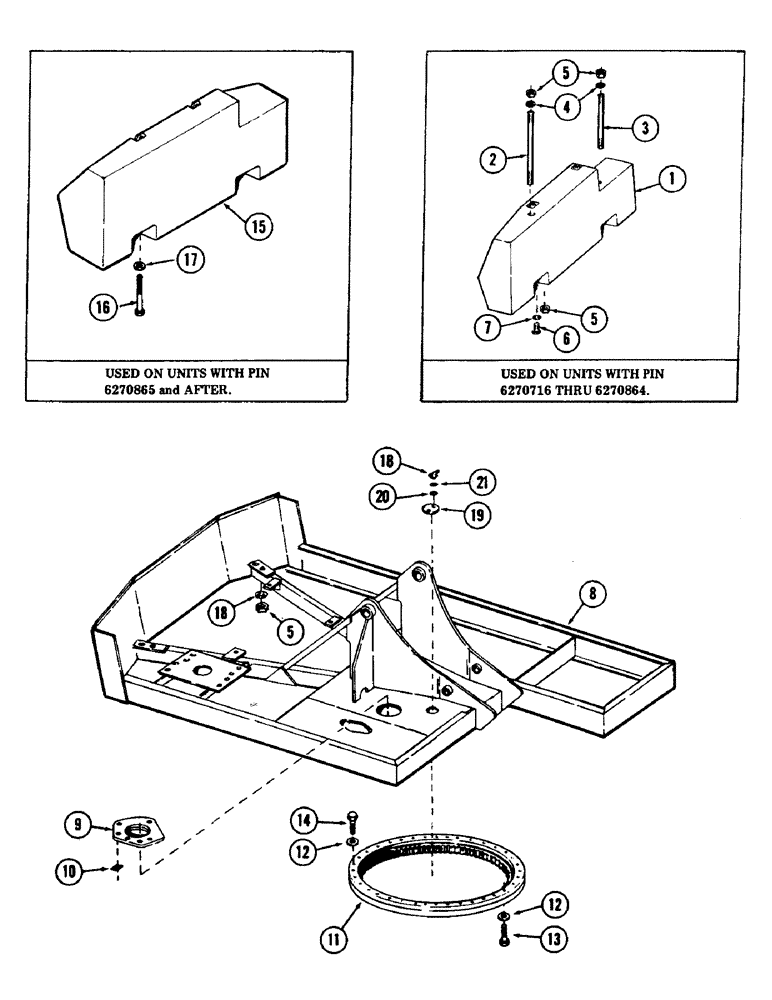

Запчасти Case 40 (086) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

S612871

COUNTERWEIGHT

1шт.

2

S114182

STUD - long

1шт.

3

S114181

STUD

- short

1шт.

4

S114254

INSERT

2шт.

5

131-454

LOCK NUT,1 1/4"-7

NUT - lock - 1-1/4" NC

2шт.

6

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- 1-1/4" x 2-1/2" NC (Grade 5)

2шт.

7

196-55

WASHER,1.06" ID x 2.5" OD x 0.13" Thk

2шт.

8

S607616

TURNTABLE

1шт.

9

S613347

PLATE

- swing reducer mounting

1шт.

10

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

11

S508668

SLEWING RING

BEARING - turntable

1шт.

12

S92353

WASHER

- hardened 5/8"

72шт.

13

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- 5/8" x 2" NC (Grade 8) (Supersedes S84906)

36шт.

14

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8" x 2-1/4" NC (Grade 8) (Supersedes S86503)

36шт.

15

S955958

COUNTERWEIGHT

1шт.

16

13-2040

BOLT,Hex, 1-1/4" - 7 x 2-1/2", Gr 5

- 1-1/4" x 2-1/2" NC (Grade 5)

2шт.

17

195-65

WASHER,1 5/8" x 1/2" x .18"

- flat 1-1/4"

2шт.

18

S77941

NUT - wing 3/8" NC

2шт.

19

S76664

COVER

(Bearing access and cleaning hole)

1шт.

20

195-103

WASHER,5/16"

- flat 3/8"

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

S108048

LUG

- lift (Optional) (For crawler rear) (Not illustrated)

2шт.

240-13

SHACKLE

(For crawler front on mast ears) - Not illustrated

2шт.
