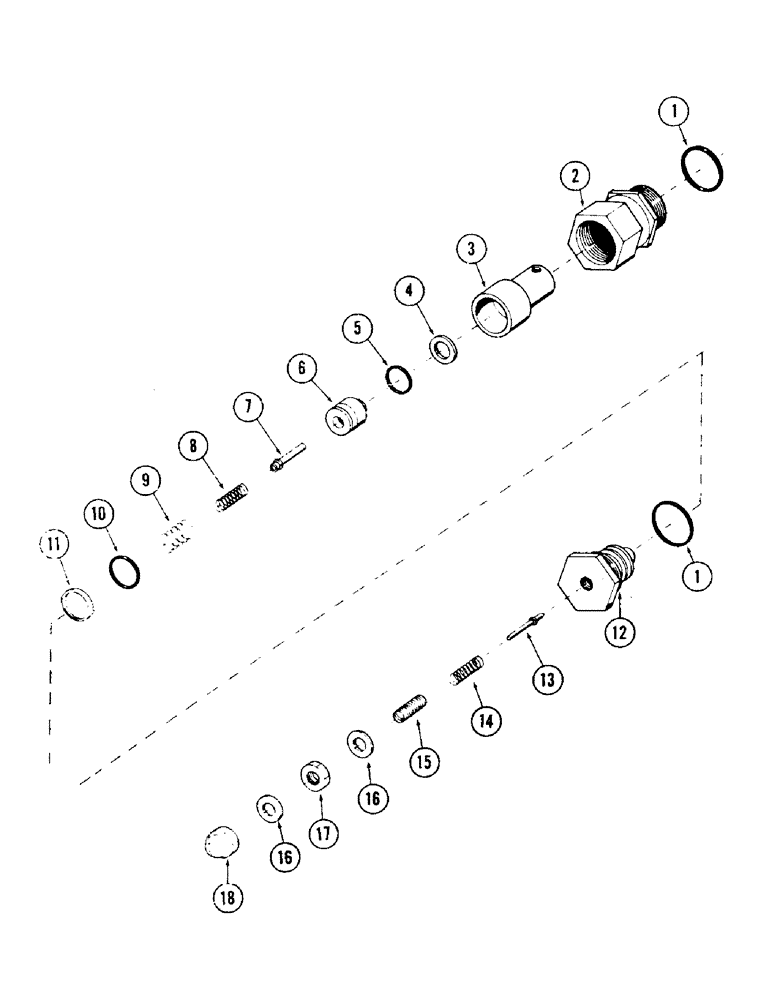

Запчасти Case 40 (268) - PORT RELIEF CARTRIDGE (35) - HYDRAULIC SYSTEMS

S85640

VALVE

CARTRIDGE, port relief - set at 2500 PSI

1шт.

S106389

VALVE, PRESSURE RELI

CARTRIDGE, port relief - set at 3200 PSI

1шт.

1

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

2

S62302

CAP

1шт.

3

S62303

POPPET

1шт.

4

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back-up

1шт.

5

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

6

S62366

VALVE POPPET

POPPET

1шт.

7

S62324

PISTON

1шт.

8

S62326

SPRING

1шт.

9

S62368

SPRING

1шт.

10

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING - .734" ID x 1.000" OD

1шт.

11

S84155

BACK-UP RING,76mm ID x 0.45mm Width

back-up

1шт.

12

S62304

PLUG

1шт.

13

S62323

POPPET

1шт.

14

S62359

SPRING

1шт.

15

S62325

ADJUSTMENT SCREW

adjustment

1шт.

16

D32117

COPPER WASHER

WASHER, COPPER

2шт.

17

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" 24 NF

1шт.

18

129-526

CROWN NUT,Low, 3/8" - 24

acorn

1шт.
