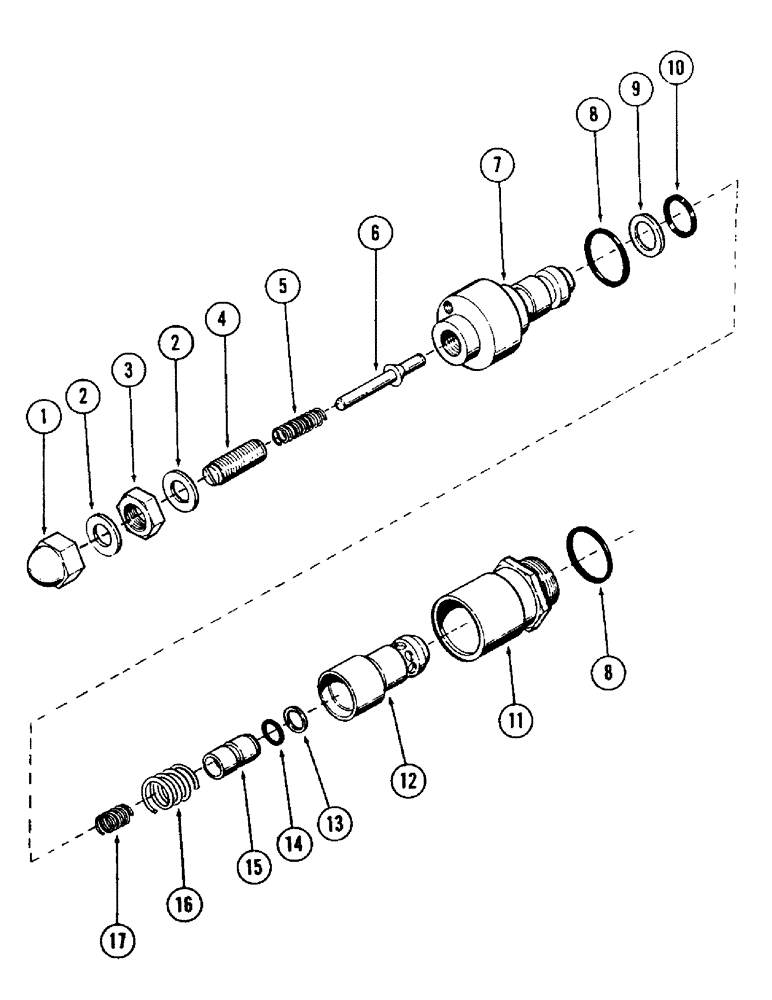

Запчасти Case 40 (264) - MAIN RELIEF CARTRIDGE, (USED ON UNITS WITH PIN 6270716 THRU 6270806 AND 6270809) (35) - HYDRAULIC SYSTEMS

S229662

VALVE

CARTRIDGE, main relief - set at 3000 PSI

2шт.

1

S93372

NUT

1шт.

2

S93370

WASHER

2шт.

3

S93371

NUT

1шт.

4

S106765

SCREW, adjustment

1шт.

5

S106763

SPRING

1шт.

6

S106770

POPPET

1шт.

7

S109969

PLUG

1шт.

8

S109966

O-RING

"O" RING

2шт.

9

S84155

BACK-UP RING,76mm ID x 0.45mm Width

bak-up

1шт.

10

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING

1шт.

11

S109968

CAP

1шт.

12

S106767

SLEEVE

1шт.

13

S106771

O-RING,0.39" ID x 0.045" Width

back-up

1шт.

14

S107729

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING

1шт.

15

S109967

VALVE POPPET

POPPET

1шт.

16

S106769

SPRING

1шт.

17

S62326

SPRING

1шт.
