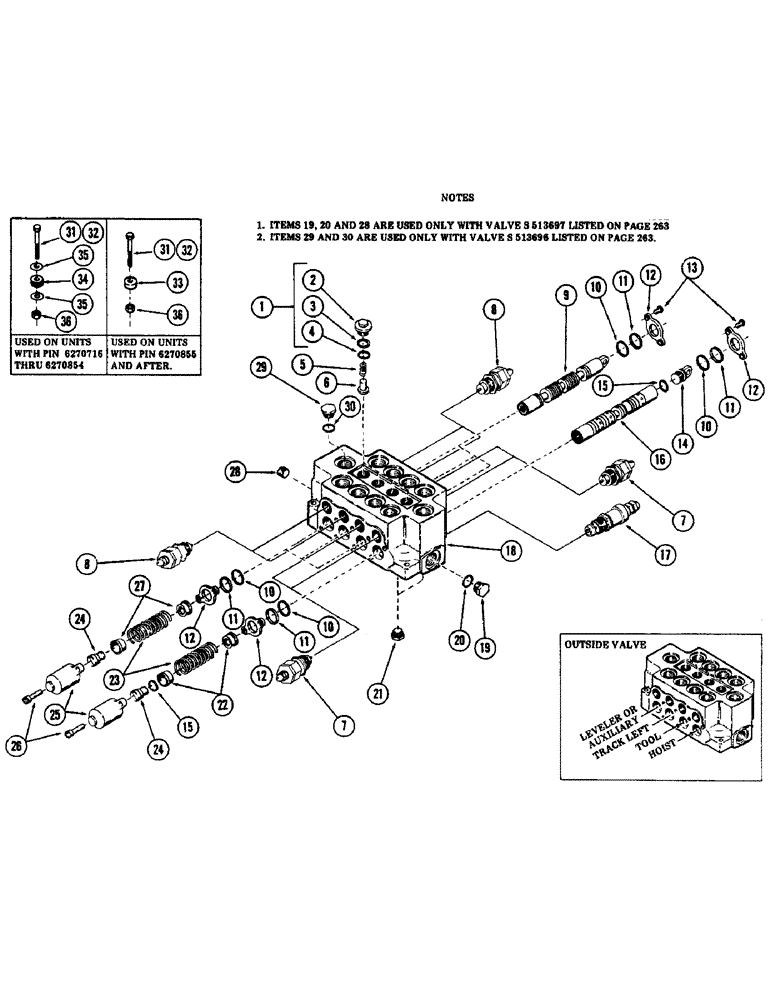

Запчасти Case 40 (262) - 4-SPOOL MAIN CONTROL VALVE, (OUTSIDE VALVE) (35) - HYDRAULIC SYSTEMS

S513696

VALVE, 4-spool main control - (Outside valve) - (Used with optional leveler)

1шт.

S513697

VALVE, 4-spool main control - (Outside valve) - (Used with optional leveler and auxiliary)

1шт.

1

S105062

PLUG

ASSEMBLY

4шт.

2

S105094

PLUG

1шт.

3

S105095

RING

back up

1шт.

4

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING

1шт.

5

S13715

SPRING

4шт.

6

S13716

VALVE POPPET

POPPET

4шт.

7

REF

INSTRUCTION

CARTRIDGE, port relief - set at 3200 PSI - (For breakdown, see Figure 268)

4шт.

8

REF

INSTRUCTION

CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see Figure 268)

4шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

10

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING

8шт.

11

S62092

WIPER

8шт.

12

S13829

PLATE

seal

8шт.

13

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

8шт.

14

S62289

END

plunger

1шт.

15

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

17

REF

INSTRUCTION

CARTRIDGE, main relief - set at 3000 PSI - (For breakdown, see Figure 264 or 266)

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

19

S8985

PLUG

- (1" tube) - 1-5/16" - 12 male - (See note 1 on Figure 262)

3шт.

20

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD - (See note 1 on Figure 262)

3шт.

21

S105060

PLUG

pipe

2шт.

22

S107817

SEAT

spring

2шт.

23

S109959

SPRING

4шт.

24

S62290

BOLT

4шт.

25

S62278

CAP

plunger

4шт.

26

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" NC x 1" Gr 8 - (Hexagon socket head)

8шт.

27

S62288

SEAT

spring

6шт.

28

221-845

PLUG,Hex Soc, 3/4"-14

pipe - 1" - 11-1/2 NPT male - (Hexagon socket) - (See note 1 below)

1шт.

29

S8985

PLUG

pipe - (1" tube) - 1-5/16" - 12 male - (See note 2 on Figure 262)

1шт.

30

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD - (See note 2 on Figure 262)

1шт.

31

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2" NC x 3-3/4" Gr 5

1шт.

32

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

2шт.

33

S113313

SPACER

valve mounting

3шт.

34

S111135

WASHER

flat - 1/2"

6шт.

35

S110886

MOUNTING PARTS

MOUNT, lord

3шт.

36

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.
