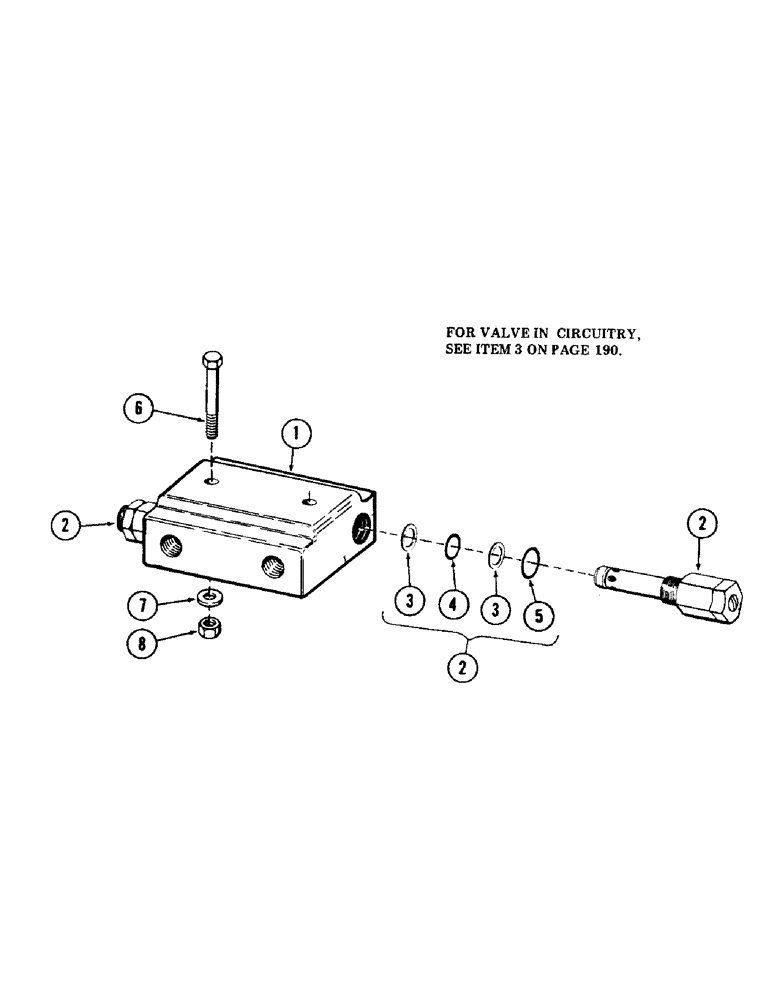

Запчасти Case 40 (254) - RELIEF VALVE, (USED IN SWING CIRCUIT) (35) - HYDRAULIC SYSTEMS

S236820

VALVE

relief - set at 1550 PSI

1шт.

1

S114840

HOUSING

valve

1шт.

2

S73968

CARTRIDGE

relief

2шт.

3

S79384

RING

back up

2шт.

4

S6483

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" RING - .924" ID x 1.125" OD

1шт.

5

S6579

O-RING

"O" RING - 1.046" ID x 1.312" OD

1шт.

6

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

7

195-102

WASHER,1/4"

flat - 5/16"

2шт.

8

113-69

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

NUT, self locking - 5/16" NC

2шт.
