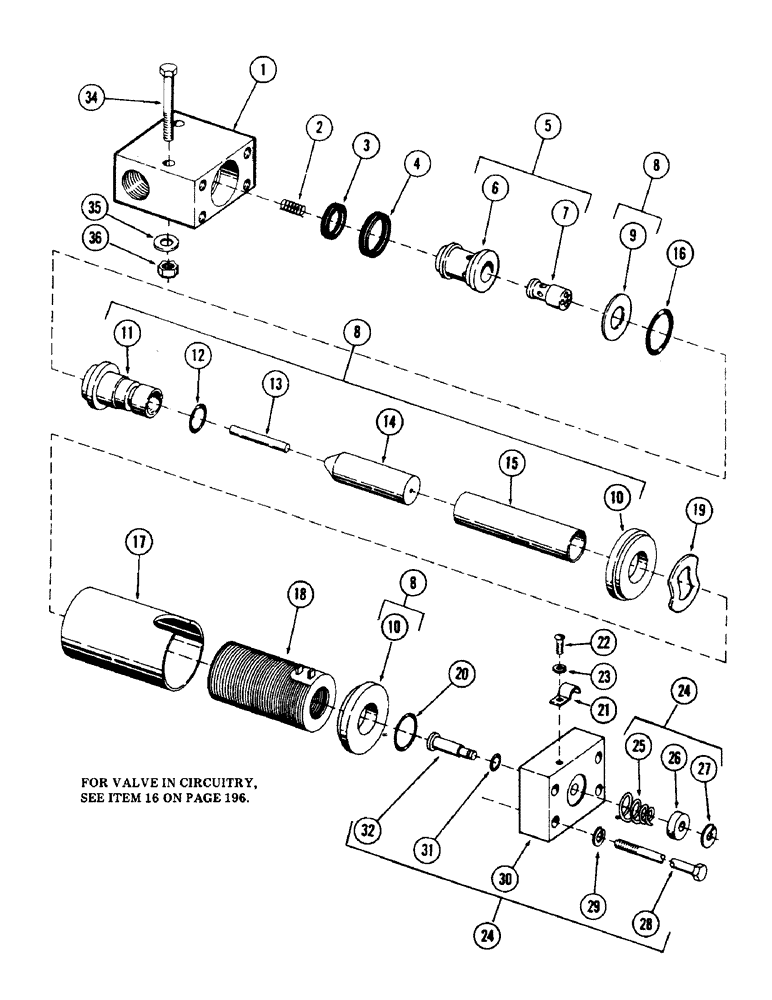

Запчасти Case 40 (250) - HI-LOW RANGE SOLENOID VALVE, (USED ON UNITS WITH PIN 6270855 AND AFTER) (35) - HYDRAULIC SYSTEMS

S514009

VALVE

hi-low range

1шт.

1

S109094

BLOCK

1шт.

2

S109095

SPRING

1шт.

3

S109096

MISC PACKAGING

PACKING

1шт.

4

S109097

MISC PACKAGING

PACKING

1шт.

5

S232006

SPOOL

AND SLEEVE ASSEMBLY

1шт.

6

S109102

SLEEVE

1шт.

7

S109101

SPOOL

1шт.

8

S232005

TUBE

ASSEMBLY

1шт.

9

S71937

WASHER

1шт.

10

S62761

WASHER

2шт.

11

S62763

STOP

1шт.

12

S109099

PACKING

1шт.

13

S71938

ROD

1шт.

14

S62766

PLUNGER

1шт.

15

S62767

TUBE

1шт.

16

S64952

SEALING RING

PACKING

1шт.

17

S62765

SHELL

1шт.

18

S116425

COIL

1шт.

19

S109106

WASHER

- spring

1шт.

20

S62768

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

PACKING

1шт.

21

S109103

CLAMP, cable

1шт.

22

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- machine

1шт.

23

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

24

S232004

MANUAL RELEASE ASSEMBLY

1шт.

25

S62771

SPRING

1шт.

26

S62772

BUTTON

1шт.

27

S109098

RING, SNAP

RING - retaining

1шт.

28

S90649

CAPSCREW

BOLT

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

S71981

PLATE

1шт.

31

S64668

PACKING

1шт.

32

S62774

PIN

1шт.

33

S64669

RIVET (Not illustrated)

1шт.

34

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5 (Mounts valve to valve mounting bracket)

2шт.

35

195-518

WASHER,1/4", SAE

flat - 1/4"

2шт.

36

86625061

NUT,1/4"-20, GB

NUT - lock - 1/4" NC

2шт.
