(126) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE)

Запчасти Case 35YC (126) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE) (07) - HYDRAULIC SYSTEM

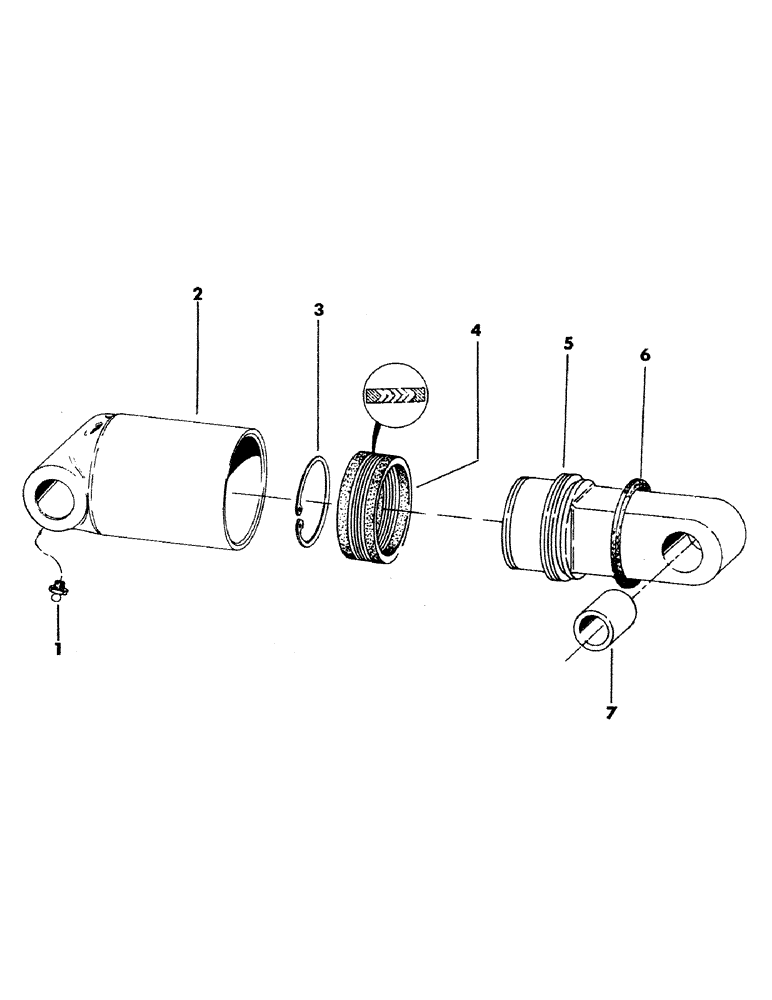

Схема запчастей Case 35YC - (126) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE) (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S56810M1

CYLINDER, leveler - complete (Consists of items 1 thru 7)

2шт.

1

S49270

FITTING

grease - 1/8" NPT x 90 degree

1шт.

2

S211166

TUBE,9.75" L

cylinder

1шт.

3

S2033

RING, SNAP

RING, retaining

1шт.

4

S209061

SEAL ASSY.

"V" RING CUP ASSEMBLY

1шт.

5

S211136

PISTON ASSY.

ROD AND PISTON ASSEMBLY - (Includes item 7)

1шт.

6

S64146

SEAL

RING, wiper - felt

1шт.

7

S202130

THREADED BUSHING

BUSHING, hardened steel

1шт.
