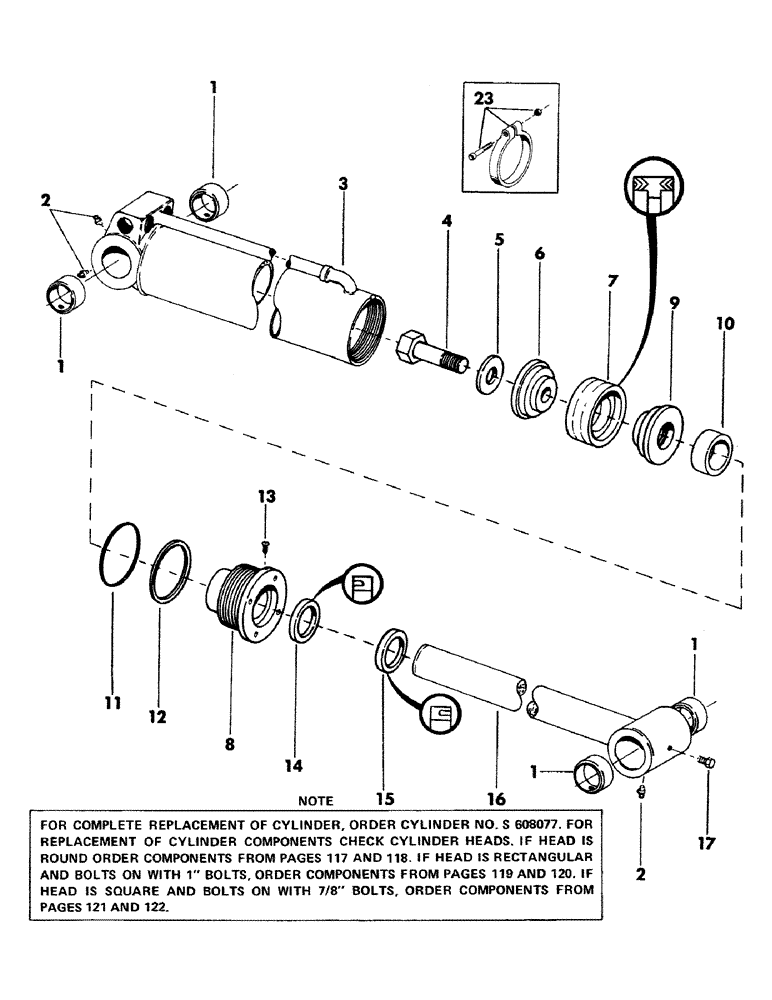

Запчасти Case 35YC (117) - HOIST AND CROWD CYLINDER, (6.53" ID X 45.50" STROKE) (07) - HYDRAULIC SYSTEM

CYLINDER, hoist and crowd - S602299 superseded by S608077) - (See notes 1 and 2)

2шт.

1

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

2

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

S49270

FITTING

grease - 1/8" NPT - 90 degree

1шт.

3

S602587

TUBE, cylinder - (Includes 2 of item 1)

1шт.

4

S92643

BOLT

1шт.

5

S98870

WASHER

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON, split - (Bolt end) - (S225623 superseded by kit S608053) - (See note 2)

1шт.

7

S508271

PACKING

"V" PACKING

1шт.

8

NSS

NOT SOLD SEPARAT

HEAD, cylinder - (S508250 superseded by kit S608053) - (See note 2)

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON, split - (Rod end) - (S225622 superseded by kit S608053) - (See note 2)

1шт.

10

S92652

SPACER

1шт.

11

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

"O" RING - (Supersedes A28183)

1шт.

#11 - A28183 was thinner than S6030

1шт.

12

S99881

WASHER

back-up - (Supersedes S92641)

1шт.

13

S7630

SCREW

self tapping - No. 8 NF x 1/4"

1шт.

14

S109927

SEAL

rod - (Supersedes S220044 and S97855)

1шт.

#14- S109927 does NOT replace S220044 - S220044 is thinner and now subs to G109055

1шт.

15

S92653

WIPER

rod

1шт.

16

S505934

ROD, piston - (Includes 2 of item 1)

1шт.

17

S15161

PLUG, pipe - 1/8" NPT - (Hex head)

1шт.

18

G33236

OPEN END WRENCH

WRENCH, spanner - (Not illustrated)

1шт.

19

S224268

TOOL

WRENCH, Williams model XTV-5PCF torque, 300 lbs, 2000 lbs. - 1" drive - Vernier click type - (Not illustrated)

1шт.

20

S224269

TOOL

MULTIPLIER, Williams model T/M 1500 torque, 4-1-1/2" drive - (Not illustrated)

1шт.

21

S224270

SOCKET

Williams model 8-696-3", 1-1/2" drive - (6 point) - (Not illustrated)

1шт.

22

S605750

KIT

service - (Includes items 19 thru 21) - (Not illustrated)

1шт.

23

S606555

PACKAGE

KIT, service - (Head clamp) - (Includes mounting hardware)

1шт.

24

S608053

HEAD

KIT, service - (See note 2) - (Not illustrated)

1шт.

25

S229891

KIT

head only

1шт.
