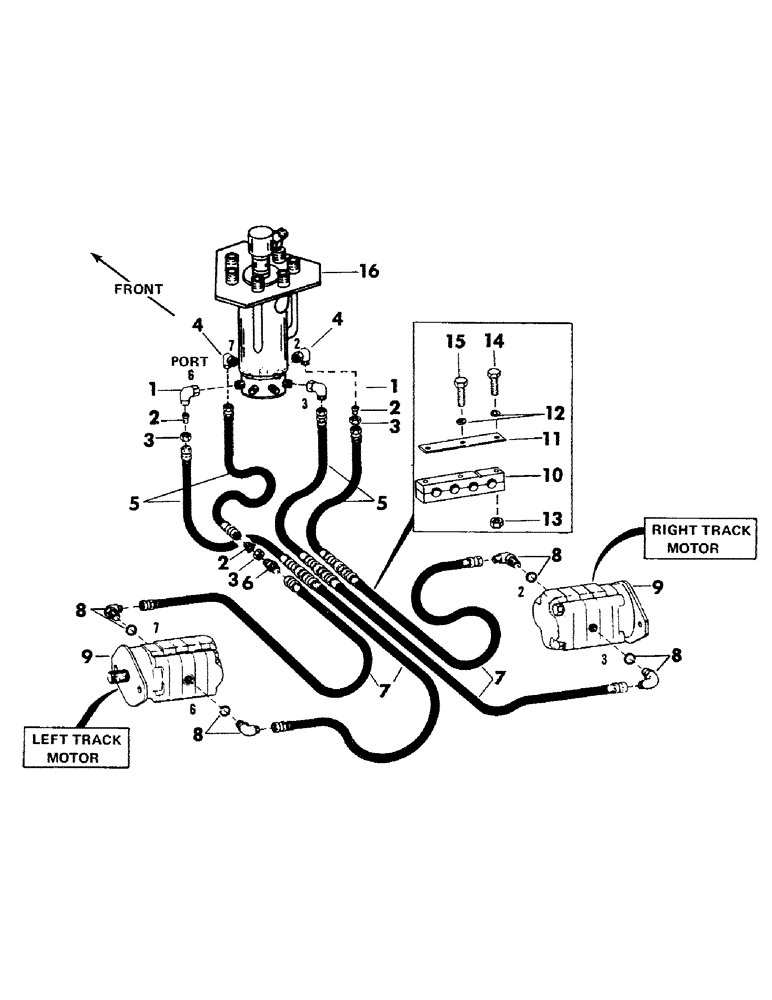

Запчасти Case 35YC (113) - LOWER TRACK DRIVE MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S10361

ELBOW

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

2

S101832

ADAPTER

reducing - 1" x 3/4" reduction

6шт.

3

S6279

NUT

- (1" tube) - 1-5/16" - 12

6шт.

4

S10359

ELBOW

90 degree swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

5

S15468

HOSE

high pressure - 3/4" ID x 28" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

6

S101338

UNION

flared - 1-5/16" - 12 male x 1-5/16" - 12 female

4шт.

7

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

8

S7952

ELBOW

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" male - (Includes "o" ring)

4шт.

S6073

RING

"O" RING - 1.475" ID x 1.711" OD

4шт.

9

MOTOR, track drive - (For breakdown, see figure 131)

2шт.

10

S209695

BLOCK

wood

1шт.

11

S79724

BAR

1шт.

12

S4399

WASHER

lock - 1/2"

3шт.

13

280431

NUT,1/2"-13, G5

3шт.

14

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

CPSW - 1/2" NC x 4-1/2" Gr 5

2шт.

15

S2481

BOLT

CPSW - 1/2" NC x 5" Gr 5

1шт.

16

SWIVEL, 7-port hydraulic - (For breakdown, see figure 127)

1шт.
