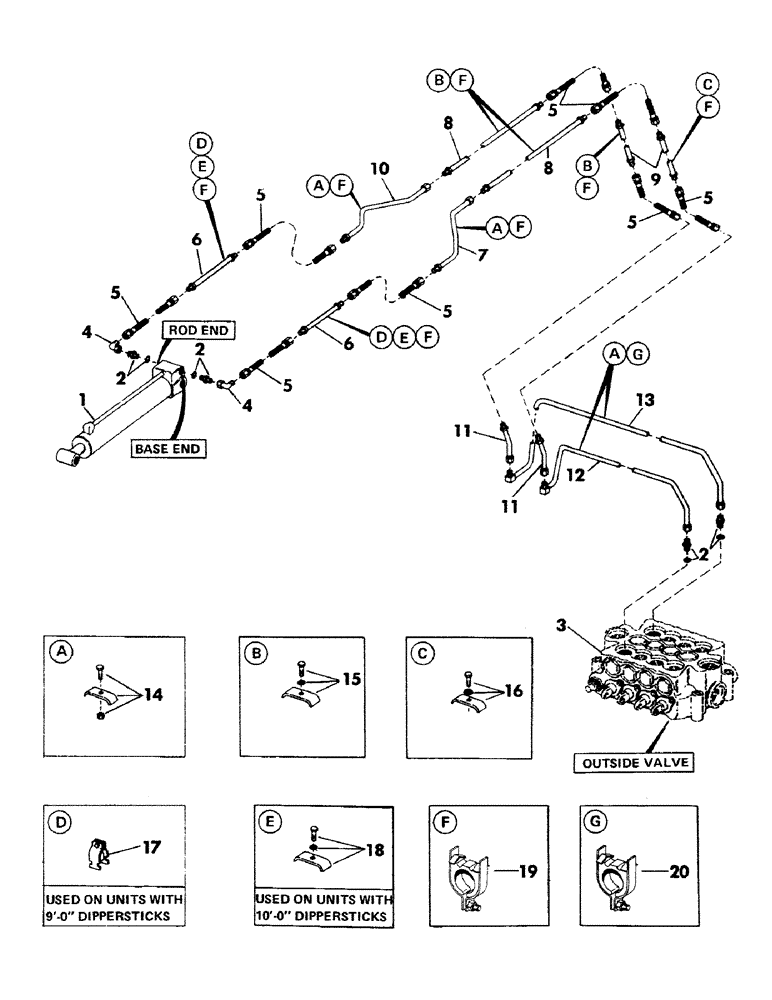

Запчасти Case 35YC (107) - TOOL CYLINDER HYDRAULICS FOR "E" BOOM (07) - HYDRAULIC SYSTEM

1

CYLINDER, tool - (For breakdown, see figure 123)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "o" ring)

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

4шт.

3

VALVE, 4-spool main control - (For breakdown, see figure 143)

1шт.

4

S10361

ELBOW

90 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

8шт.

6

S211836

TUBE,1.25" OD x 17.3" L

LINE, hydraulic - (Used on units with 9'0" dipperstick)

2шт.

S211835

TUBE ASSY.,1.25" OD x 41.3" L

LINE, hydraulic - (Used on units with 10'-6" dippersticks)

2шт.

7

S211833

TUBE ASSY.,1.25" OD x 35.6, 7.7" L

LINE, hydraulic

1шт.

8

S211832

LINE

hydraulic

1шт.

9

S211850

TUBE ASSY.,1.25" OD x 46.4" L

LINE, hydraulic

1шт.

10

S211834

TUBE ASSY.,35.6, 7.7" L

LINE, hydraulic

1шт.

11

S211849

LINE,1.25" OD

hydraulic

1шт.

12

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

13

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

14

S46397

CLAMP

- (Used on units with serial number 300 thru 784, 786, 788 and 790)

1шт.

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" Gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

15

S46397

CLAMP

- (Used on units with serial number 300 thru 784, 786, 788 and 790)

1шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" Gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

16

S88023

CLAMP - (Used on units with serial number 300 thru 784, 786, 788 and 790)

1шт.

S2470

BOLT

CPSQ - 1/2" NC x 2-1/4" Gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

17

S93266

CLAMP

- (Used on all units with 9'0" dippersticks)

1шт.

18

S46397

CLAMP

- (Used on units with 10'6" dippersticks and serial number 300 thru 784, 786, 788 and 790)

1шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" Gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

19

S93266

CLAMP

- (Used on units with serial number 785, 787, 789 and 791 and after)

1шт.

20

S93266

CLAMP

- (Used on units with serial number 708 and after)

1шт.
