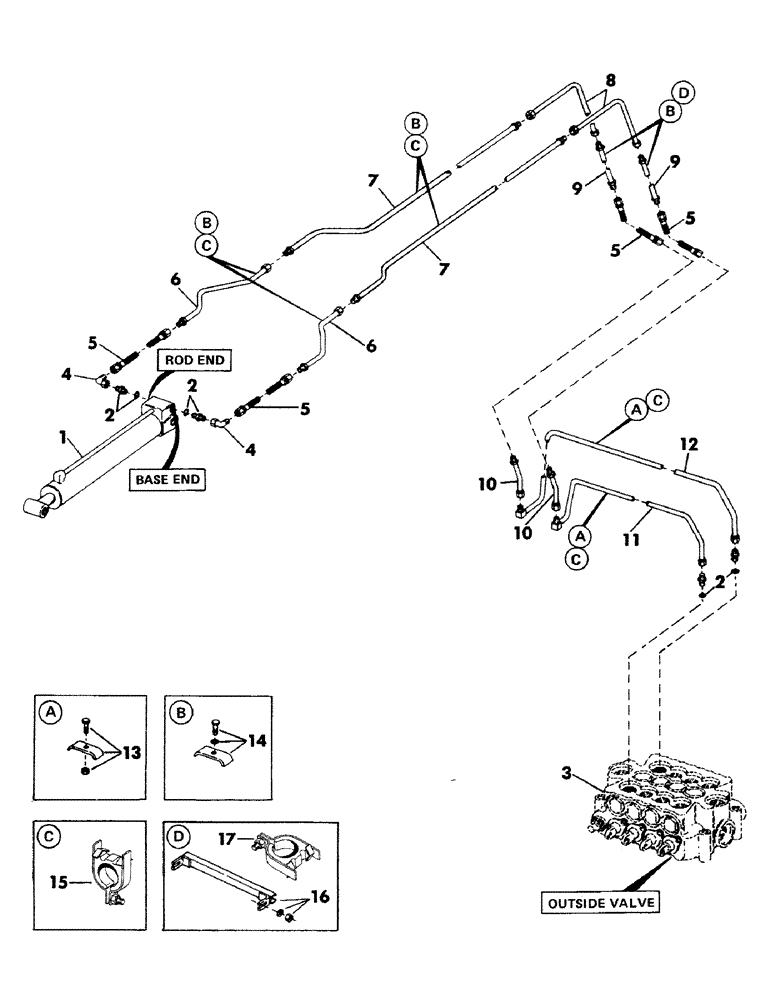

Запчасти Case 35YC (105) - TOOL CYLINDER HYDRAULICS FOR "Y" BOOM (07) - HYDRAULIC SYSTEM

1

CYLINDER, tool - (For breakdown, see figure 123)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "o" ring)

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

4шт.

3

VALVE, 4-spool main control - (For breakdown, see figure 143)

1шт.

4

S10361

ELBOW

90 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

6

S211907

TUBE ASSY.,1.25" OD x 20, 5.75" L

LINE, hydraulic

2шт.

7

S502566

TUBE,1.25" OD x 58, 3.26" L

LINE, hydraulic

2шт.

8

S501696

TUBE ASSY.,1.25" OD x 13.92, 7.55" L

LINE, hydraulic

2шт.

9

S211941

TUBE ASSY.,1.25" OD x 63" L

LINE, hydraulic

2шт.

10

S211849

LINE,1.25" OD

hydraulic

2шт.

11

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

12

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

13

S46397

CLAMP

- (Used on units with serial number 300 thru 707)

1шт.

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" Gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

14

S46397

CLAMP

- (Used on units with serial number 300 thru 707)

1шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" Gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

15

S93266

CLAMP

- (Used on units with serial number 708 and after)

1шт.

S226021

BRACKET, clamp mounting - (Used on units with serial number 708 and after)

1шт.

S86132

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

17

S93266

CLAMP

- (Used on units with serial number 708 and after)

2шт.
