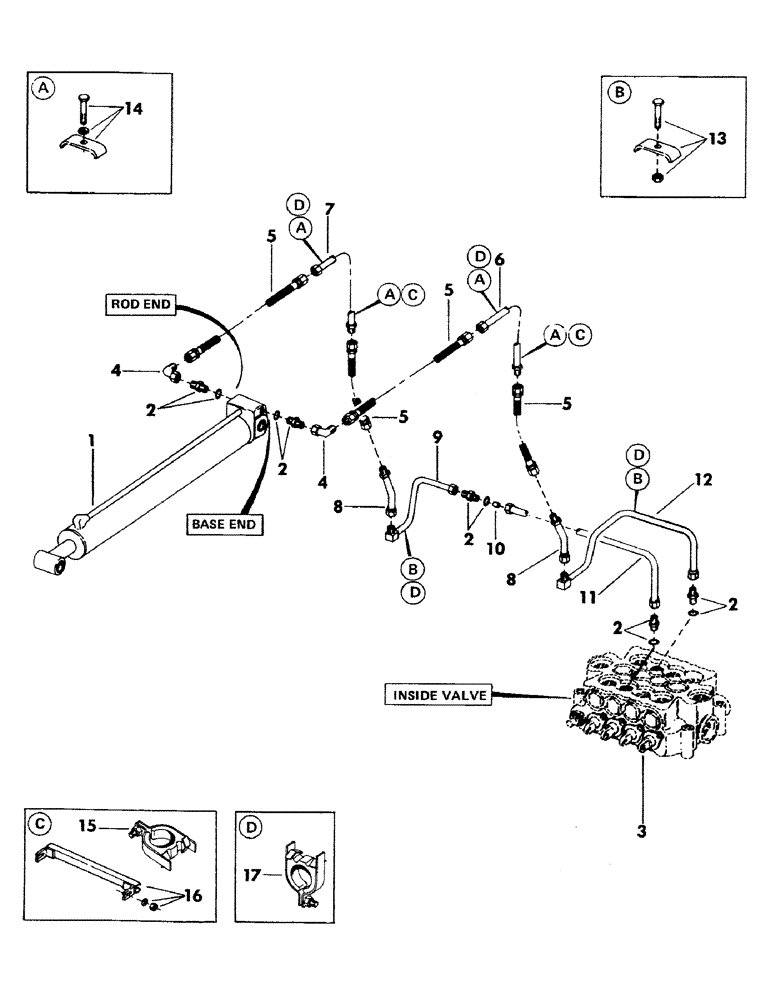

Запчасти Case 35YC (101) - CROWD CYLINDER HYDRAULICS FOR "Y" BOOM (07) - HYDRAULIC SYSTEM

1

CYLINDER, crowd - (For breakdown, see figures 117 thru 121)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (Includes "o" ring)

5шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

5шт.

3

VALVE, 4-spool main control - (For breakdown, see figure 141)

1шт.

4

S10361

ELBOW

90 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" female pressed on couplings)

4шт.

6

S506420

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

7

S502409

TUBE ASSY.,1.25" OD

LINE, hydraulic

1шт.

8

S211849

LINE,1.25" OD

hydraulic

2шт.

9

S502109

LINE,1.25" OD

hydraulic

1шт.

10

S79252

REGULATOR

flow

1шт.

11

S502078

TUBE ASSY.,1.25" OD x 9.1, 19" L

LINE, hydraulic

1шт.

12

S502079

TURBINE,1.25" OD

LINE, hydraulic

1шт.

13

S46397

CLAMP

- (Used on units with serial number 300 thru 707)

1шт.

S2473

BOLT

CPSW - 1/2" NC x 3" Gr 5

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

14

S46397

CLAMP

- (Used on units with serial number 300 thru 707)

1шт.

S2473

BOLT

CPSW - 1/2" NC x 3" Gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

15

S93266

CLAMP

- (Used on units with serial number 708 and after)

1шт.

16

S226021

BRACKET, clamp mounting - (Used on units with serial number 708 and after)

1шт.

S86132

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

17

S93266

CLAMP

- (Used on units with serial number 708 and after)

2шт.
