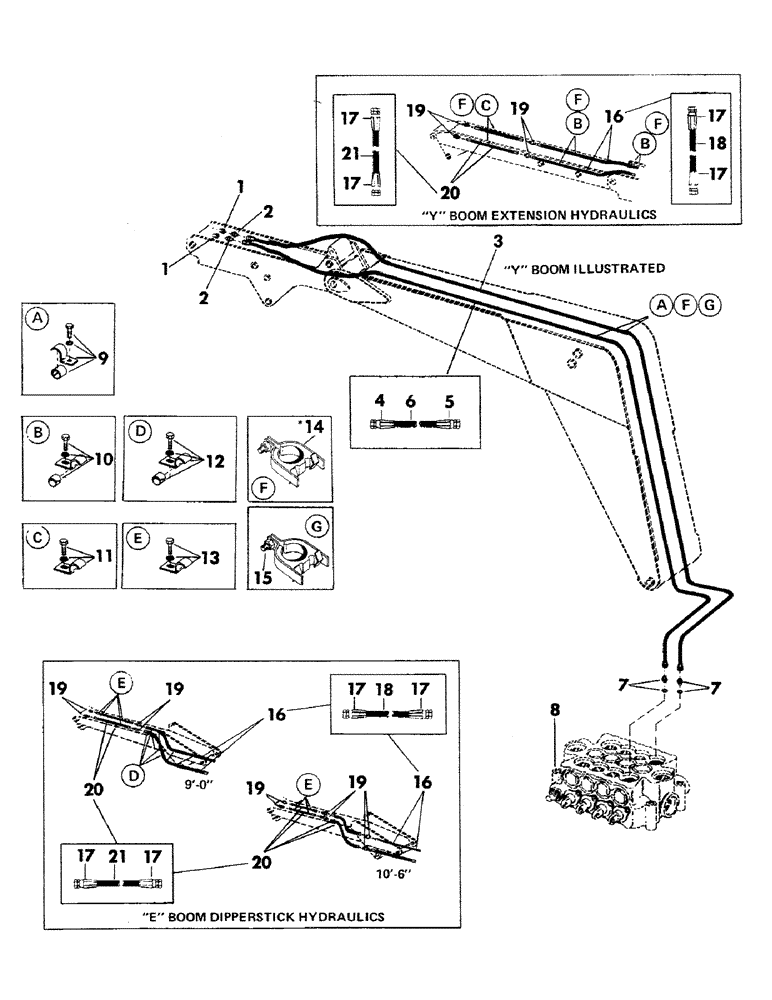

Запчасти Case 35YC (094) - AUXILIARY BOOM HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S6277

NUT

sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

2шт.

2

S101833

ADAPTER

reducing - (3/4" x 1/2" tube) - 3/4" - 16 male - 37 degree flared

2шт.

3

S75824

HOSE ASSY.

HOSE, high pressure - 3/4" ID x 28' long - (Consists of items 4, 5 and 6)

2шт.

4

S60037

COUPLING, reusable - 1-1/16" - 12 male - 37 degree flared

2шт.

5

S11094

PIVOT

COUPLING, reusable - 1-1/16" - 12 female - 37 degree flared

2шт.

6

S28463

HOSE

high pressure - (Bulk) - 3/4" ID x 27' - 10" long

1шт.

7

S7969

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) - 1-5/16" - 12 male x 1-1/16" - 12 male - 37 degree flared - (Includes "O" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

8

VALVE, 4-spool main control - (For breakdown, see figure 141)

1шт.

9

S75850

CLAMP

tube - (Used on units with serial number 300 thru 707 with "Y" booms)

1шт.

S75850

CLAMP

tube - (Used on units with serial number 300 thru 784, 786, 788, and 790 with "E" booms)

1шт.

S75794

RING

compression

1шт.

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

10

S77324

CLAMP

tube - (Used on units with serial number 300 thru 707 with "Y" booms)

1шт.

S2454

CPSW - 1/2" NC x 3/4" gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

S75792

RING

compression

1шт.

11

S77324

CLAMP

tube - (Used on units with serial number 300 thru 707 with "Y" booms)

1шт.

S2454

CPSW - 1/2" NC x 3/4" gr 5

1шт.

S4399

WASHER

flat - 1/2"

1шт.

12

S77324

CLAMP

tube - (Used on units with serial number 300 thru 784, 786 788 and 790 with "E" booms)

1шт.

S2473

BOLT

CPSW - 1/2" NC x 3" gr 5

1шт.

S4399

WASHER

flat - 1/2"

1шт.

S75792

RING

compression

1шт.

13

S77324

CLAMP

tube - (Used on units with serial number 300 thru 784, 786 788 and 790 with "E" booms)

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

1шт.

S4399

WASHER

flat - 1/2"

1шт.

14

S93266

CLAMP

tube - (Used on units with serial number 708 and after with "Y" booms)

1шт.

S93266

CLAMP

tube - (Used on units with serial number 785, 787, 789, and 791 and after with "E" booms)

1шт.

15

S99742

CLAMP

tube - (Used on units with serial number 785, 787, 789, and 791 and after with "E" booms)

1шт.

16

S11234

FLEXIBLE HOSE

HOSE, high pressure - 3/8" ID x 7' - 2-1/2" long - (Consists of items 17 and 18)

1шт.

17

S11091

FITTING

COUPLING, reusable - 3/4" - 16 female - 37 degree flared

1шт.

18

S28465

HOSE

high pressure - (Bulk) - 2 pieces - 3/8" ID x 7'-1/2" long

1шт.

19

S101334

UNION

- (1/2" tube) - 3/16" - 16 male x 3/4" - 16 male - 37 degree flared

1шт.

20

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long - (Consists of items 17 and 21)

1шт.

21

S28465

HOSE

high preesure - (Bulk) - 3/8" ID x 24" long

1шт.
