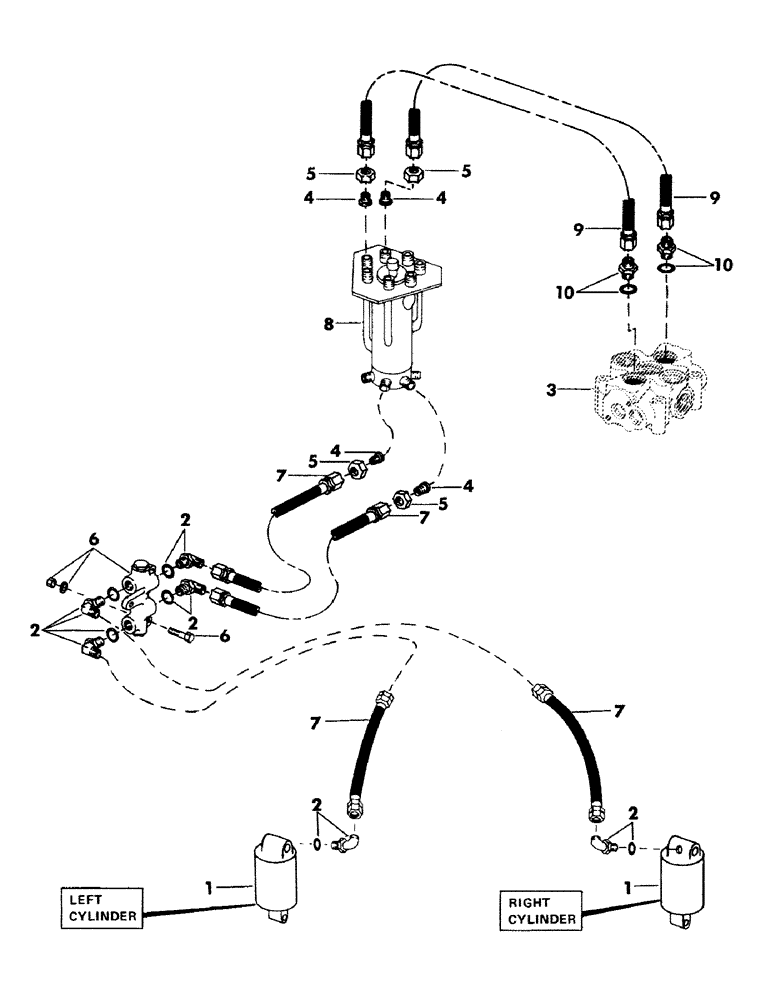

Запчасти Case 35YC (085) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 597 AND AFTER.) (07) - HYDRAULIC SYSTEM

1

CYLINDER, leveler - (For breakdown, see figure 126)

2шт.

2

S7939

ELBOW

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared - (Includes "O" ring)

6шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

6шт.

3

VALVE, 1-spool main control - (For breakdown, see figure 139)

1шт.

4

S101833

ADAPTER

reducing - (3/4" to 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

4шт.

5

S6277

NUT

- (3/4" tube) - 1-1/16" - 12 female

4шт.

6

VALVE, check - (For breakdown, see figure 137)

1шт.

S2355

BOLT

CPSW - 1/4" NC x 2" gr 5

2шт.

S4395

WASHER, LOCK

WASHER, flat - 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC

2шт.

7

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

4шт.

8

SWIVEL, 7-port - (For breakdown, see figure 127)

1шт.

9

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

10

S7985

CONNECTOR, ELEC

CONNECTOR - (5/8" tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degree flared - (Includes "O" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.
