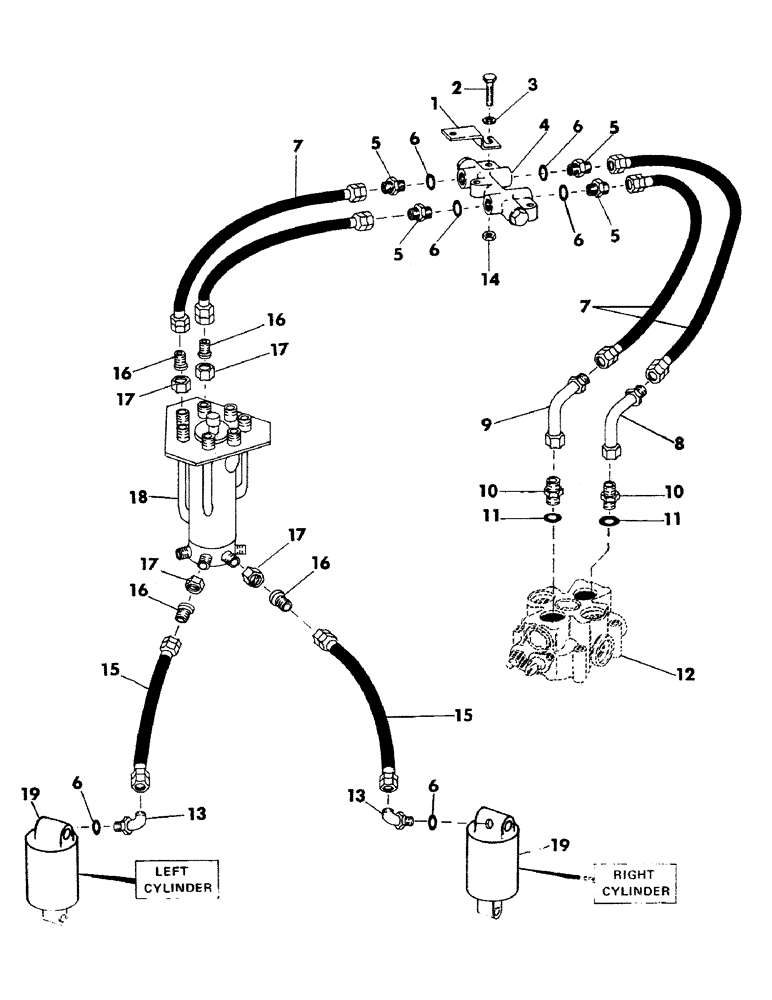

Запчасти Case 35YC (083) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 300 THRU 596) (07) - HYDRAULIC SYSTEM

1

S69624

BRACKET

2шт.

2

S2381

BOLT

CPSW - 5/16" NC x 2-1/4" gr 5

2шт.

3

S7393

WASHER

flat - 5/16"

2шт.

4

VALVE, check - (For breakdown, see figure 137)

1шт.

5

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "O" ring)

4шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

4шт.

6

CYLINDER, leveler - (For breakdown, see figure 126)

2шт.

7

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4 " - 16 female pressed on couplings)

4шт.

8

S506096

LINE, hydraulic 0.625" OD x 7, 3.25" L

1шт.

9

S506097

LINE, hydraulic 0.625" OD x 11, 3.25" L

1шт.

10

S7985

CONNECTOR, ELEC

CONNECTOR, flared - (5/8" tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degrees flared - (Includes item 11)

2шт.

11

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

12

VALVE, 1-spool main - (For breakdown, see figure 139)

1шт.

13

S7939

ELBOW

90 degree adjustable - (1/2" tube) - 3/4" - 16 female - 37 degree flared - (Includes "O" ring)

2шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

14

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.

15

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

2шт.

16

S101833

ADAPTER

reducing - (3/4" x 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

4шт.

17

S6277

NUT

- (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

4шт.

18

SWIVEL, 7-port hydraulic - (For breakdown, see figure 127)

1шт.
