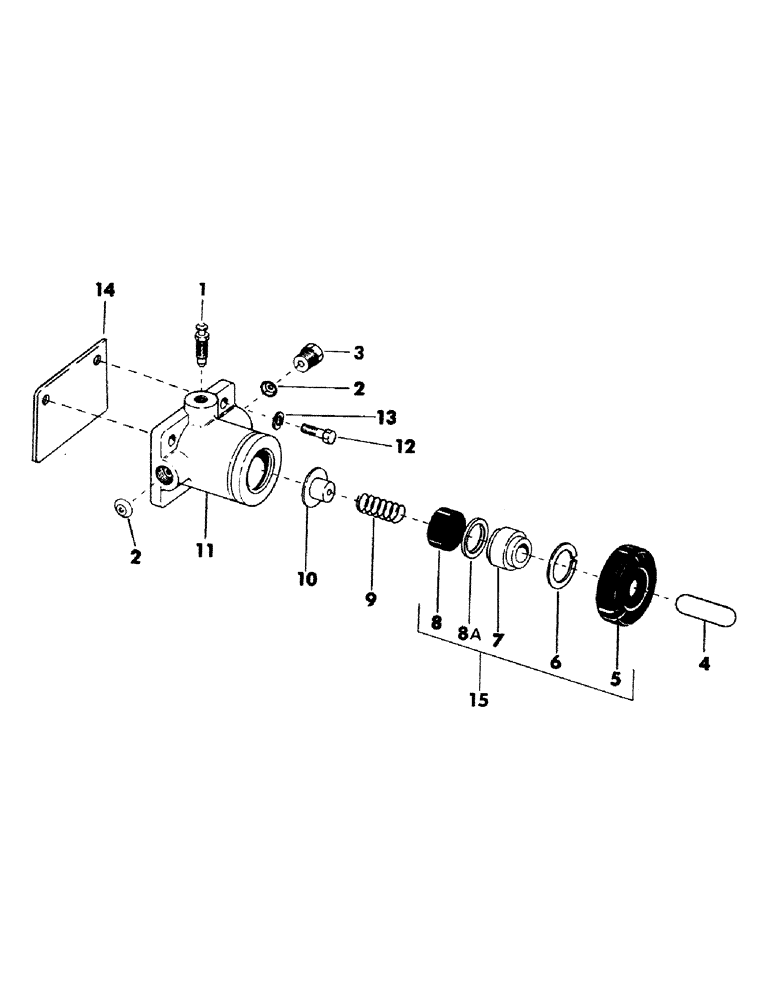

Запчасти Case 35YC (081A) - TRACK BRAKE CYLINDER, (USED ON UNITS WITH SERIAL NUMBER 6266045 AND AFTER) (07) - HYDRAULIC SYSTEM

S232060

CYLINDER

track brake - 3/4" - complete (Consists of items 1 thru 11) - (Supersedes S209804)

2шт.

1

S61746

SCREW

bleeder

1шт.

2

R15270

HARDWARE

INSERT - 1/4" tube seat - (Supersedes S61740)

2шт.

3

S61747

PLUG

-1/4" tube seat

1шт.

4

S108918

ROD

push - (Supersedes S61731)

1шт.

5

NSS

NOT SOLD SEPARAT

BOOT

1шт.

6

NSS

NOT SOLD SEPARAT

RING, retainer

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

8

NSS

NOT SOLD SEPARAT

CUP

1шт.

8a

NSS

NOT SOLD SEPARAT

RING, back up

1шт.

9

S108914

SPRING

return

1шт.

10

S108912

STOP, spring - (Supersedes S61737)

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

2шт.

13

S4395

WASHER, LOCK

- 1/4"

2шт.

14

S96840

SPACER

4шт.

15

S108919

PACKAGE

KIT, service - (Consists of items 5 thru 8A)

1шт.
