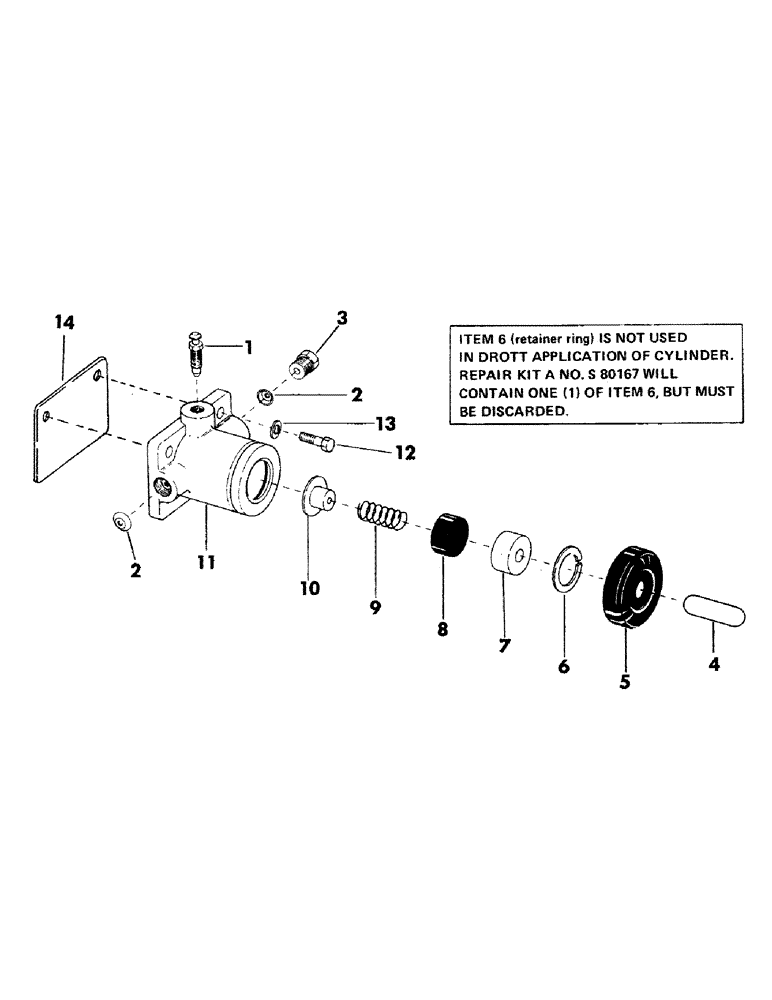

Запчасти Case 35YC (081) - TRACK BRAKE CYLINDER, * (USED ON UNITS WITH SERIAL NUMBER 300 THRU 6266044) (07) - HYDRAULIC SYSTEM

S209804

CYLINDER

track brake - complete (Consists of item 1 thru 11)

2шт.

1

SCREW, bleeder

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

2

INSERT - 1/4" tube seat

2шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

3

PLUG - 1/4" tube seat

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

4

NSS

NOT SOLD SEPARAT

ROD, push

1шт.

5

BOOT

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

6

RING, retainer - (In S80167 kit - do not use)

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

7

PISTON

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

8

CUP

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

9

SPRING, return

1шт.

NOTE: Letters in footnote column indicate these items are serviced in kit only.

1шт.

10

NSS

NOT SOLD SEPARAT

STOP, spring

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

2шт.

13

S4395

WASHER, LOCK

- 1/4"

2шт.

14

S96840

SPACER

4шт.

a

S80167

PACKAGE,SERVICE

KIT, service - (Consists of items 1 thru 3 and 5 thru 9)

1шт.
